Description

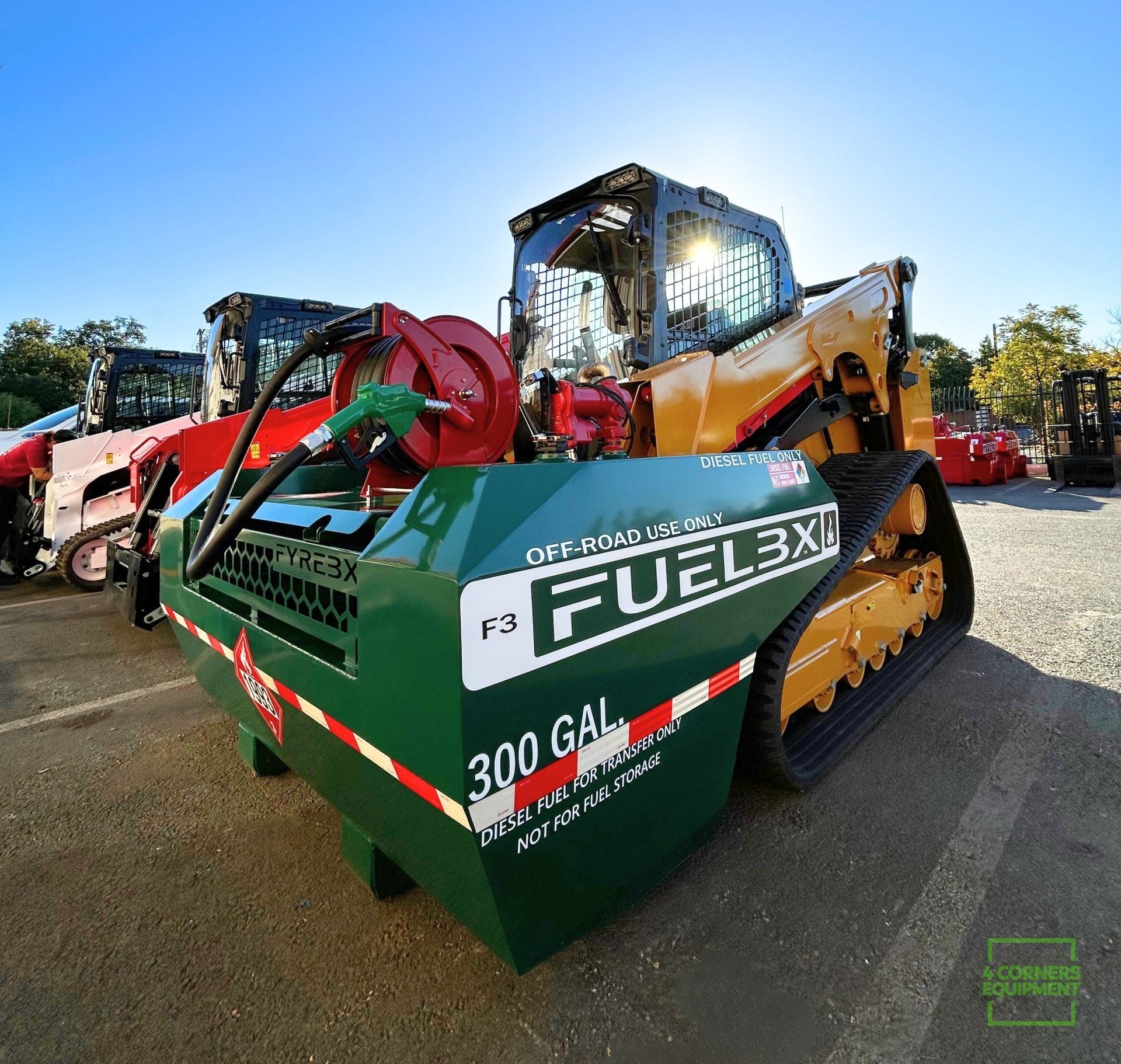

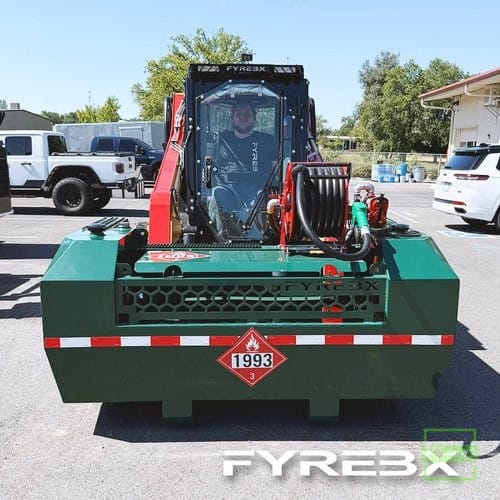

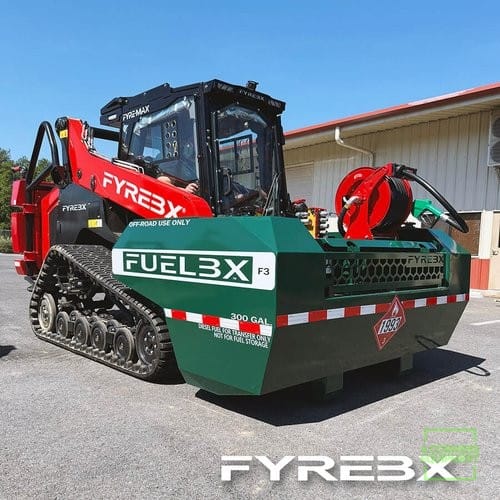

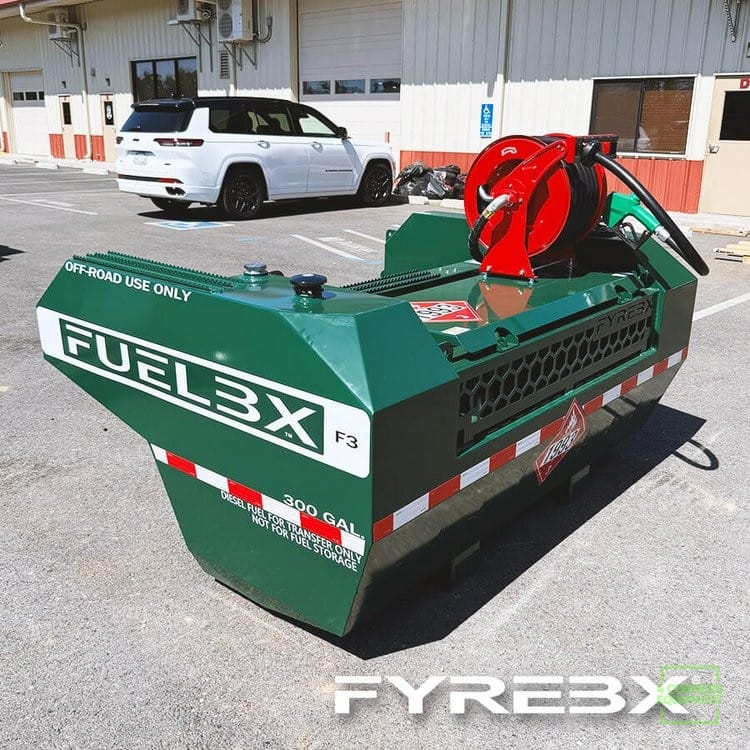

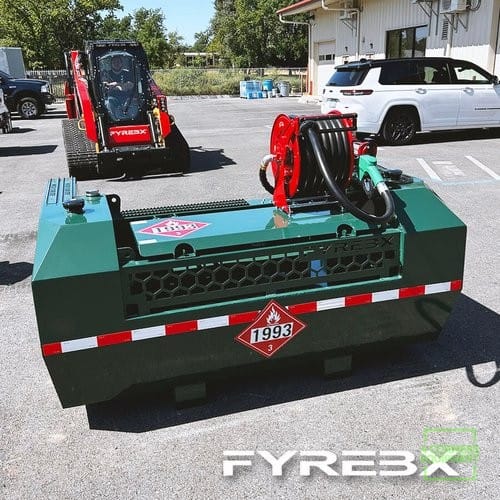

The FYREBX FUELBX T3 is a 300-gallon mobile diesel refueling attachment engineered for compact track loaders. It carries a 20 GPM electric fuel pump, a 50-foot hose reel, and a 10-micron inline filter, and mounts to any CTL through a 1/4-inch steel universal plate rated to 30,000 pounds. Empty it weighs about 850 pounds; loaded with diesel it runs roughly 2,920 pounds.
Power comes straight from the loader’s standard 14-pin connector, so no external supply is needed. The welded 10- and 12-gauge mild steel tank uses one longitudinal and two transverse baffles to keep fuel stable in transit, while four lifting eyes rated to 6,000 pounds per hook and four tie-down points secure the unit for hauling. A grounding strap and a 5-pound A/B/C fire extinguisher come standard, and two 2-inch accessory receivers add mounting flexibility.
The FUELBX meets EPA regulations for diesel fuel transfer and is built to international safety standards. It is designed for diesel transfer only and is not intended for fuel storage. New from FYREBX and available through 4 Corners Equipment in Farmington, New Mexico.
Key Features
- 300-Gallon Diesel Capacity: Carry enough fuel to top off several machines in a single run.
- 20 GPM Electric Pump: High-volume pumping refuels equipment fast and gets crews back to work.

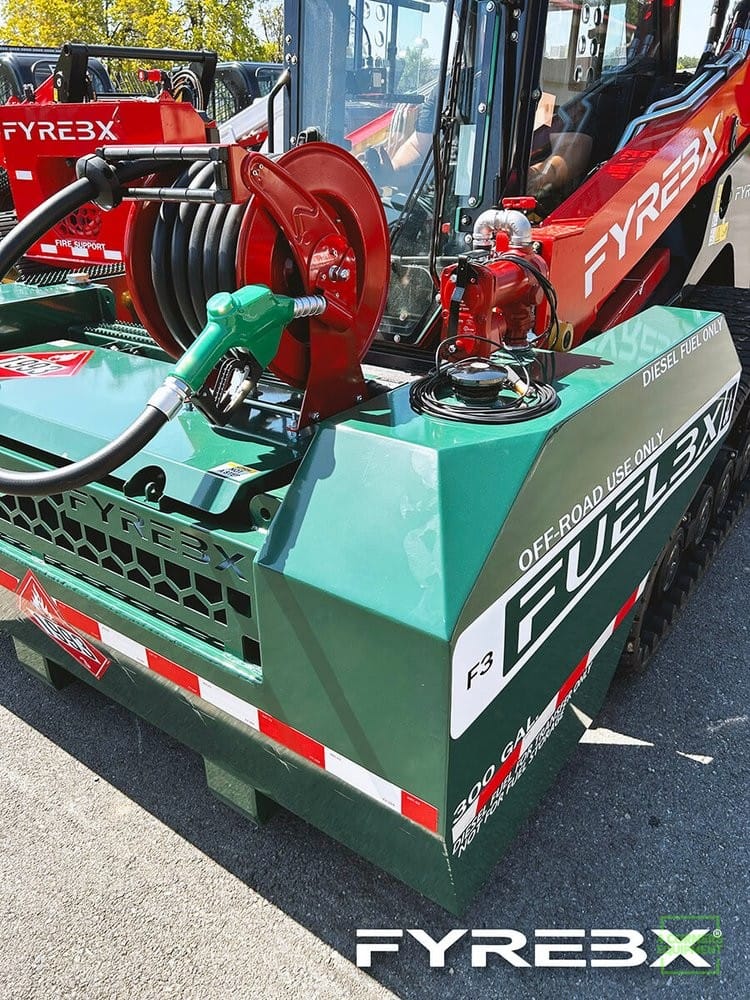

- 50-Foot Hose Reel: The integrated reel reaches equipment without repositioning the loader.
- 10-Micron Fuel Filter: Inline filtration keeps diesel clean and protects the fuel systems you feed.
- Direct 14-Pin Power: Plugs into the CTL’s standard 14-pin connector, so no external power source is required.
- Universal Attachment: A 1/4-inch steel plate rated to 30,000 pounds fits all compact track loaders.
- Baffled Steel Tank: Welded 10- and 12-gauge steel with one longitudinal and two transverse baffles keeps fuel stable on rough ground.
- Safety Equipment Included: A grounding strap and 5-pound A/B/C fire extinguisher ship with every unit.
- Secure Transport: Four lifting eyes at 6,000 pounds per hook and four tie-down points lock the tank down for hauling.
- EPA-Compliant Transfer: Built to meet EPA diesel transfer regulations and international safety standards.
Specifications
- Capacity: 300 gal (1,136 L) diesel
- Dimensions (W x H x D): 83 x 60 x 63 in (211 x 152 x 160 cm)
- Weight (Empty): ~850 lb (386 kg)
- Weight (Full): ~2,920 lb (1,325 kg)
- Fuel Pump: Electric, 20 GPM (75.7 L/min)
- Hose Reel: 50 ft (15.2 m)
- Fuel Filter: 10-micron inline
- Power: CTL 14-pin connector, direct
- Tank Construction: 10 & 12-gauge welded mild steel
- Internal Baffles: 1 longitudinal, 2 transverse
- Attachment Plate: 1/4 in (6.4 mm) steel, 30,000 lb (13,608 kg)
- Lift Points: 4x rated 6,000 lb (2,722 kg) per hook, 24,000 lb (10,886 kg) total
- Accessory Receivers: 2x 2 in (5.1 cm)
- Safety: Grounding strap + 5 lb (2.3 kg) A/B/C fire extinguisher
- Condition: New
Applications
- On-site refueling for excavators, dozers, loaders, and generators on construction sites
- Agricultural fuel delivery to tractors, combines, and irrigation pumps in the field
- Forestry fuel delivery to feller bunchers, skidders, and chainsaws in remote logging areas
- Mining and quarrying fuel delivery to drilling rigs, loaders, and haul trucks
- Remote site operations where fuel truck access is limited or impossible
- Emergency fuel delivery for generators and critical equipment
Why FYREBX?
- 🇺🇸 Made in the USA: Designed and manufactured domestically for durability and field serviceability.
- 🔥 Patented Design: A U.S. utility patent covers the tank attachment technology behind the platform.
- 🔥 Operator Safety: All systems are controlled from inside the cab, keeping personnel protected in hazardous conditions.
- 🔥 True Versatility: One platform handles wildfire suppression, hydroseeding, dust control, fueling, and fluid handling.
- 🔥 Field-Proven: Adopted by CAL FIRE, procured by the U.S. Army, and trusted across four continents.
Why Choose the FUELBX T3?
The FUELBX removes the logistical headache of fuel truck scheduling and access limits. By mounting a 300-gallon diesel supply directly on your compact track loader, one operator can deliver fuel to any machine on site, including rough terrain, steep grades, and remote locations conventional fuel trucks cannot reach. With its integrated pump, filter, hose reel, and safety gear, it is a complete refueling station that travels with your crew and cuts equipment idle time.
Ready to keep your fleet fueled wherever the work is? Talk to our team at 4 Corners Equipment in Farmington for FUELBX pricing and availability.
