Description

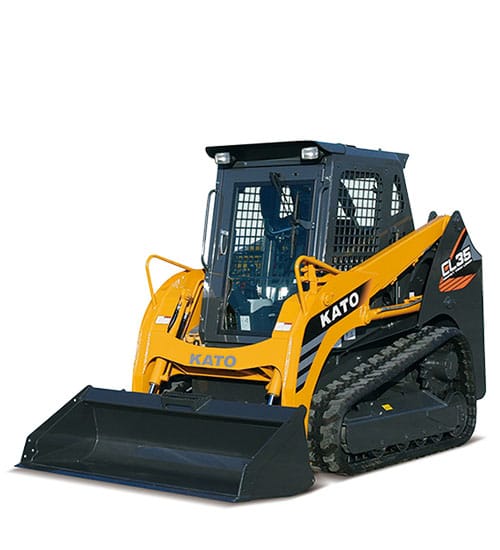

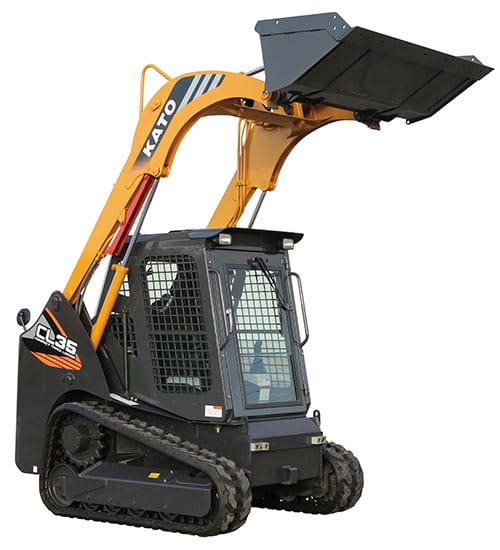

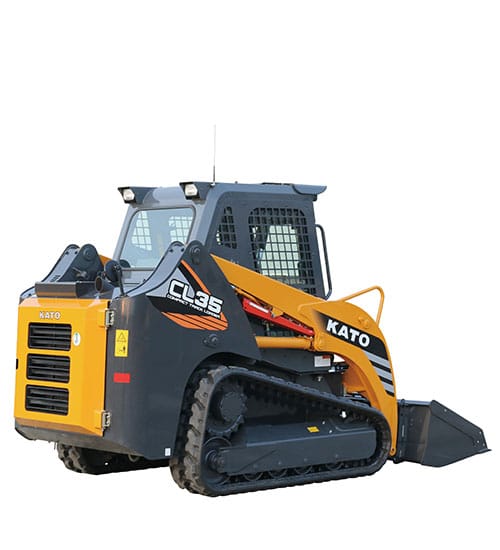

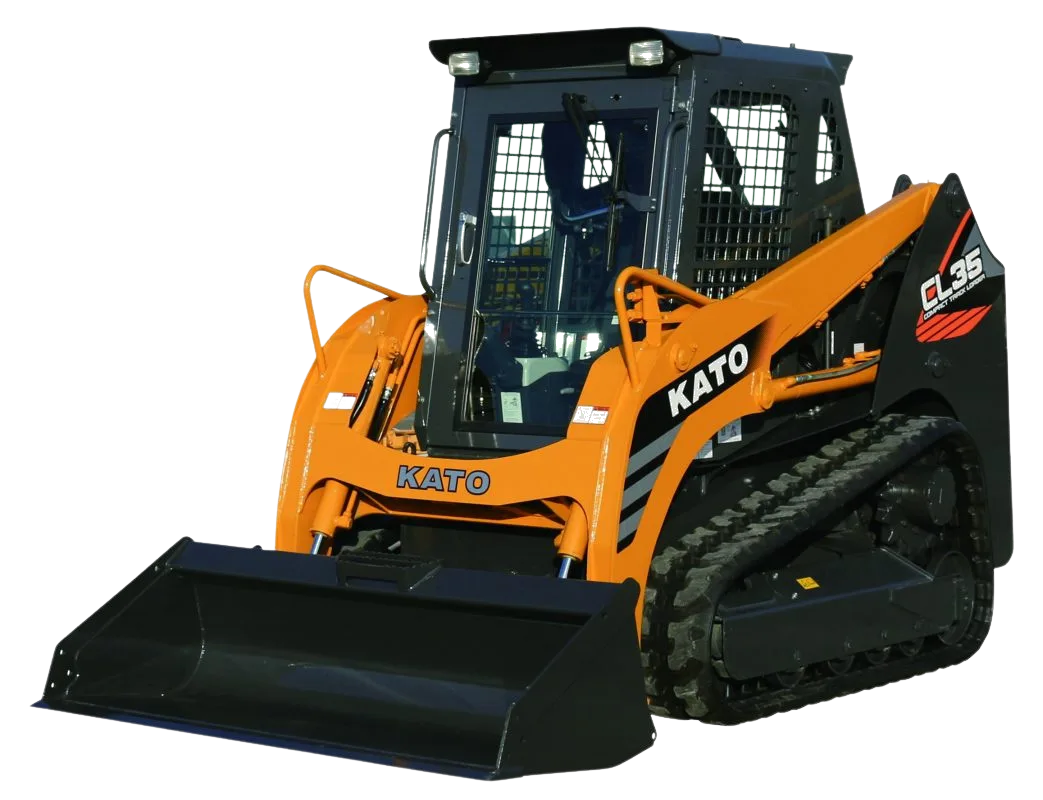

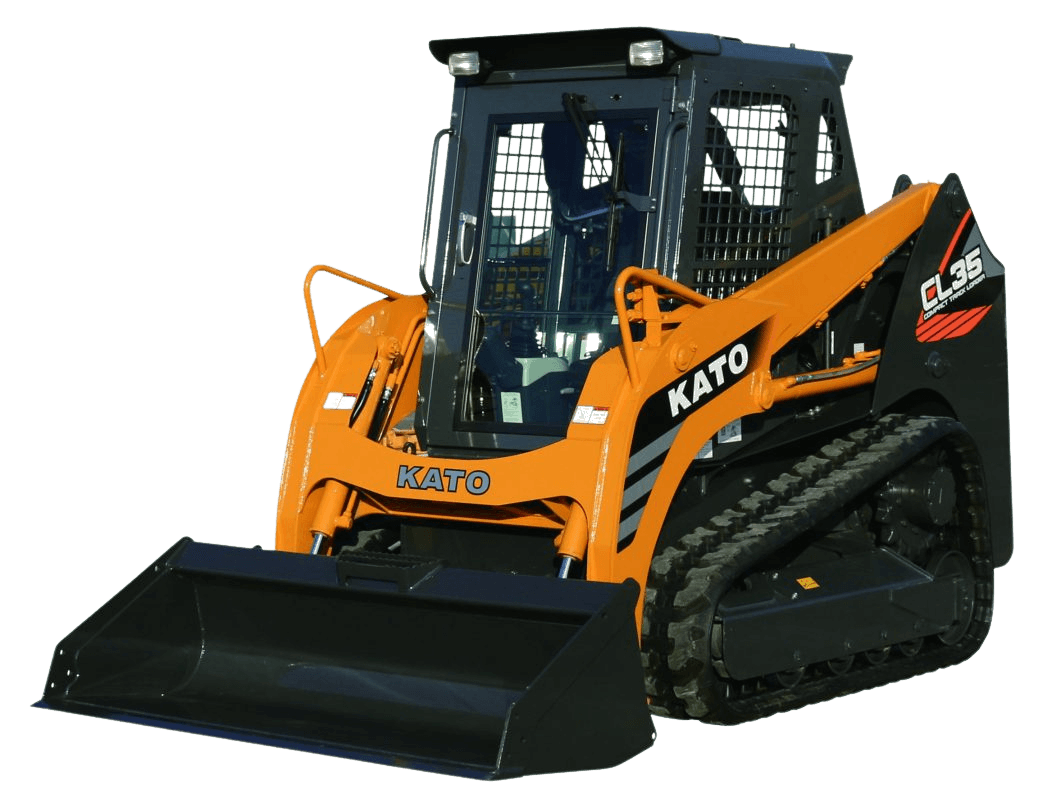

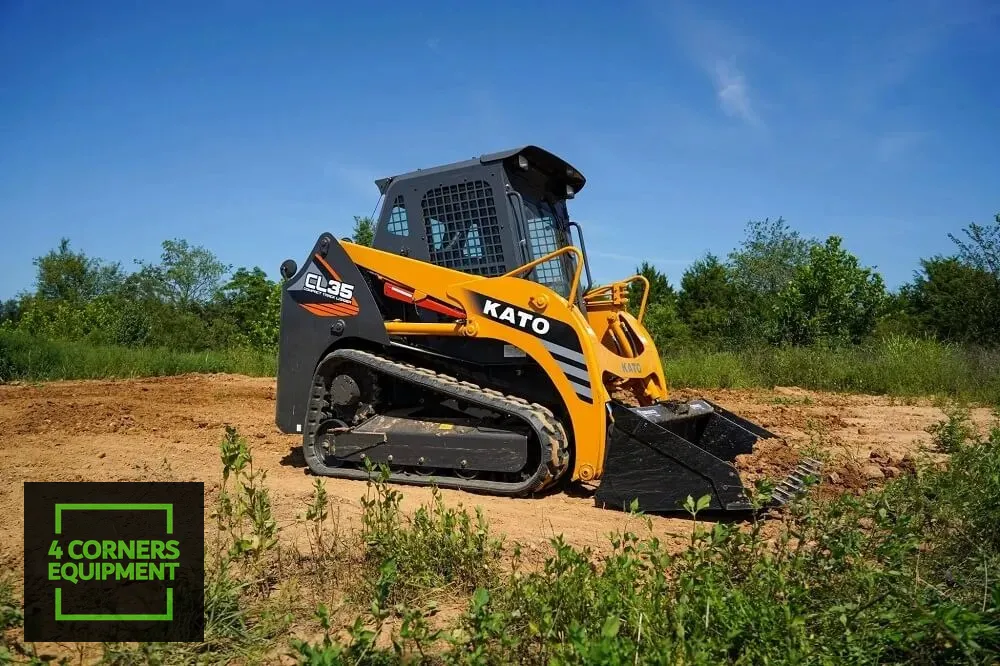

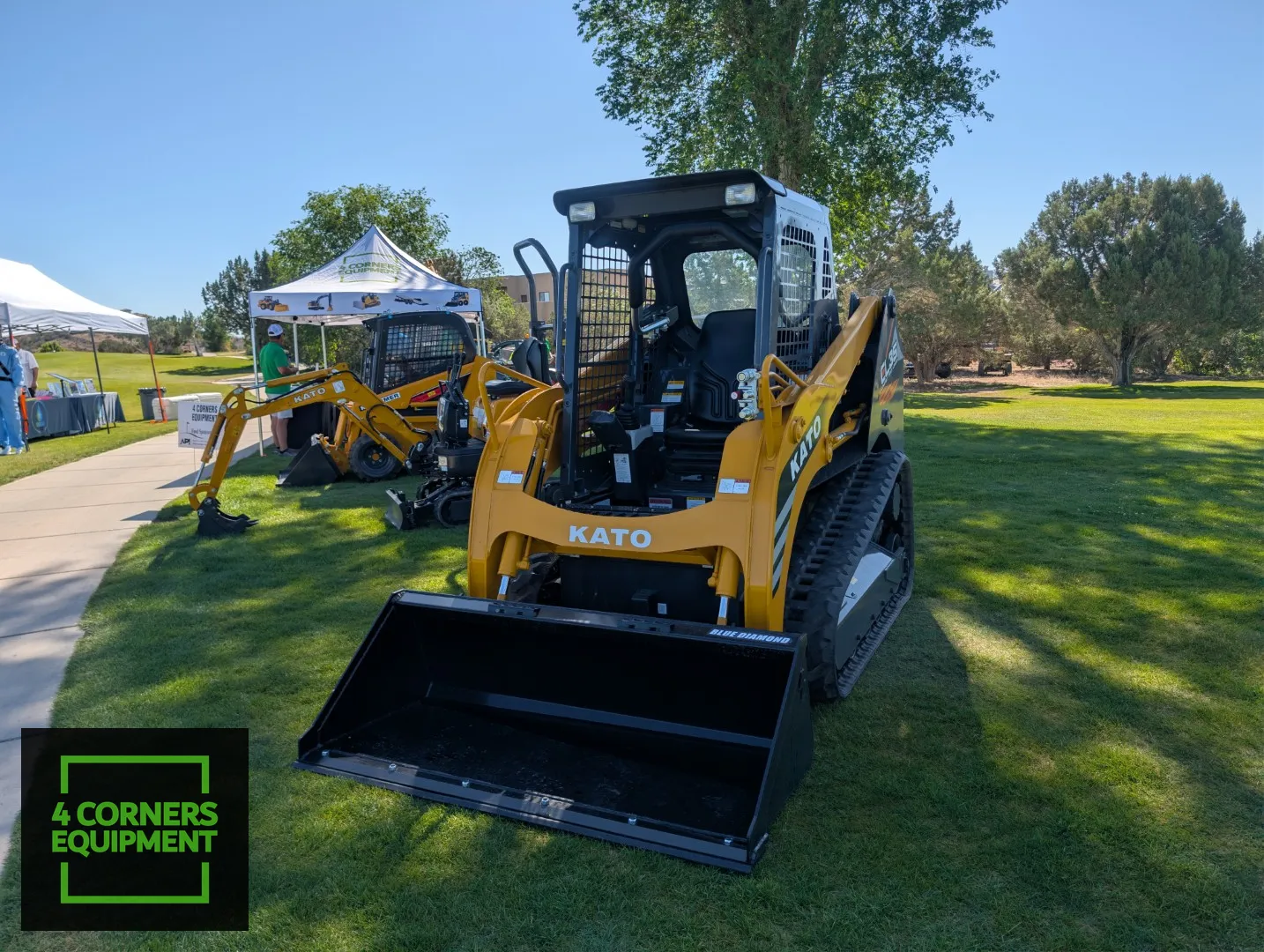

The Kato CL35-4f is a mid-size compact track loader powered by a 62 HP Kubota V2403-CR diesel engine rated at 2,700 RPM. It delivers 6,474 lbs of bucket digging force and carries a 12.7 ft³ heaped bucket, giving contractors serious material-handling capability in a machine that fits where full-size loaders cannot. Canopy operating weight is 7,804 lbs (3,540 kg).
Dual-speed travel runs 4.2 mph (6.8 km/h) in low and 6.2 mph (10.0 km/h) in high, so operators get precise positioning and quick job-site repositioning from the same machine. A 30° gradeability rating and low 5.62 psi ground pressure let the CL35-4f climb slopes and float over soft or sensitive ground where rubber-tire machines lose traction. Rated operating capacity is 1,721 lbs (781 kg) at the 35% tip and 2,458 lbs (1,115 kg) at 50%, and the 24-gallon (90.8 L) tank keeps it running through the day.
Like all Kato equipment, the CL35-4f is built to be straightforward: simple controls without endless sub-menus, so experienced operators are productive from the first bucket. It is new equipment backed by the Kato CES dealer network, which keeps common parts stocked in the U.S. to keep downtime short.
Key Features
- 62 HP Kubota V2403-CR Diesel: A proven powerplant rated at 2,700 RPM supplies the hydraulic muscle for demanding loader work.
- 6,474 lb Bucket Digging Force: High-flow hydraulics let the loader break out compacted material without stalling the cycle.
- 12.7 ft³ Heaped Bucket: A larger bucket moves more material per pass without the cost of an oversized machine.
- Dual-Speed Travel: Switch between 4.2 mph for precise placement and 6.2 mph for faster moves across the site.
- 30° Gradeability: The machine climbs slopes and works rough terrain that stops lower-rated loaders.
- 5.62 psi Ground Pressure: Low ground pressure floats over turf, soft soil, and sensitive surfaces without tearing them up.
- 1,721 lb Rated Capacity: An SAE 35% tip rating gives operators dependable lifting numbers for real-world loads.
- 2,458 lb Operating Capacity: The 50% tip rating adds margin when handling heavier material within safe limits.
- 24-Gallon Fuel Tank: A full day of runtime means fewer refueling stops and less lost production time.
- Simple Operator Controls: No overcomplicated electronics, so experienced operators are productive from the first bucket.
- U.S.-Stocked Parts: The Kato CES dealer network keeps common parts stateside to keep downtime short.
Specifications
- Operating Weight (Canopy/Cab): 7,804 / 7,937 lbs (3,540 / 3,600 kg)
- Transportation Weight (Canopy/Cab): 7,639 / 7,771 lbs (3,465 / 3,525 kg)
- Engine Model: Kubota V2403-CR
- Output Rating: 62 HP @ 2,700 RPM
- Heaped Bucket Capacity: 12.7 ft³ (0.36 m³)
- Bucket Width: 5’8″ (1.73 m)
- Bucket Digging Force: 6,474 lbs (28.8 kN)
- Rated Capacity (35% Tip): 1,721 lbs (781 kg)
- Operating Capacity (50% Tip): 2,458 lbs (1,115 kg)
- Tipping Capacity: 4,916 lbs (2,230 kg)
- Travel Speed (Low/High): 4.2 / 6.2 mph (6.8 / 10.0 km/h)
- Gradeability: 30°
- Ground Pressure (Canopy/Cab): 5.62 / 5.71 psi
- Fuel Tank Capacity: 24 gallons (90.8 L)
- Condition: New equipment
Applications
- General construction material handling and site prep
- Utility installation in soft or sensitive ground conditions
- Landscaping and hardscaping on established properties
- Agricultural feed handling, manure management, and barn work
- Demolition debris loading in confined spaces
- Snow removal and winter maintenance
- Grading and backfilling where traction is critical
Why Kato?
- 🏭 Since 1895: Kato Works has manufactured equipment in Japan for well over a century.
- 🤝 Family-Owned Distribution: Kato CES is the family-owned North American distributor with over 30 years in business.
- 🔧 Built to Work: Kato machines are engineered for the job rather than to impress a spec sheet.
- 🇺🇸 U.S.-Stocked Parts: The Kato CES dealer network stocks common parts domestically, avoiding overseas delays.
- 🛠️ Straightforward Service: Simple designs keep operators productive and maintenance uncomplicated.
Why Choose the Kato CL35-4f?
Kato Works has been manufacturing equipment in Japan since 1895, and Kato CES (Compact Excavator Sales) is the family-owned North American distributor with over 30 years in business. The CL35-4f is engineered to work rather than to impress a spec sheet, so operators get productive immediately and service stays straightforward. When you do need parts, Kato CES stocks them in the U.S. through their dealer network, with no overseas delays. Ready to put the Kato CL35-4f to work? Talk to our team at 4 Corners Equipment today.
Ready to put the Kato CL35-4f compact track loader to work on your next job?
