Description

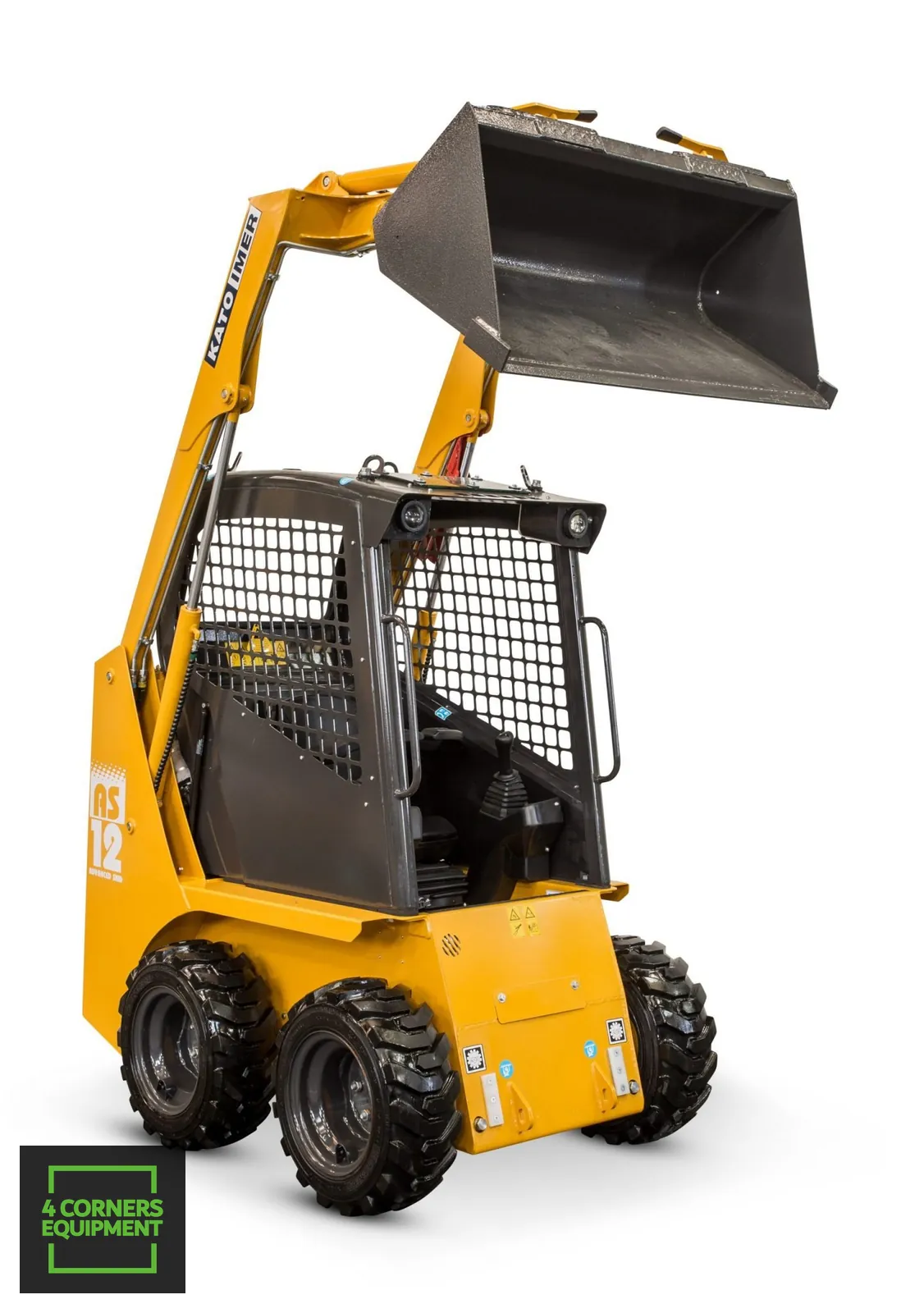

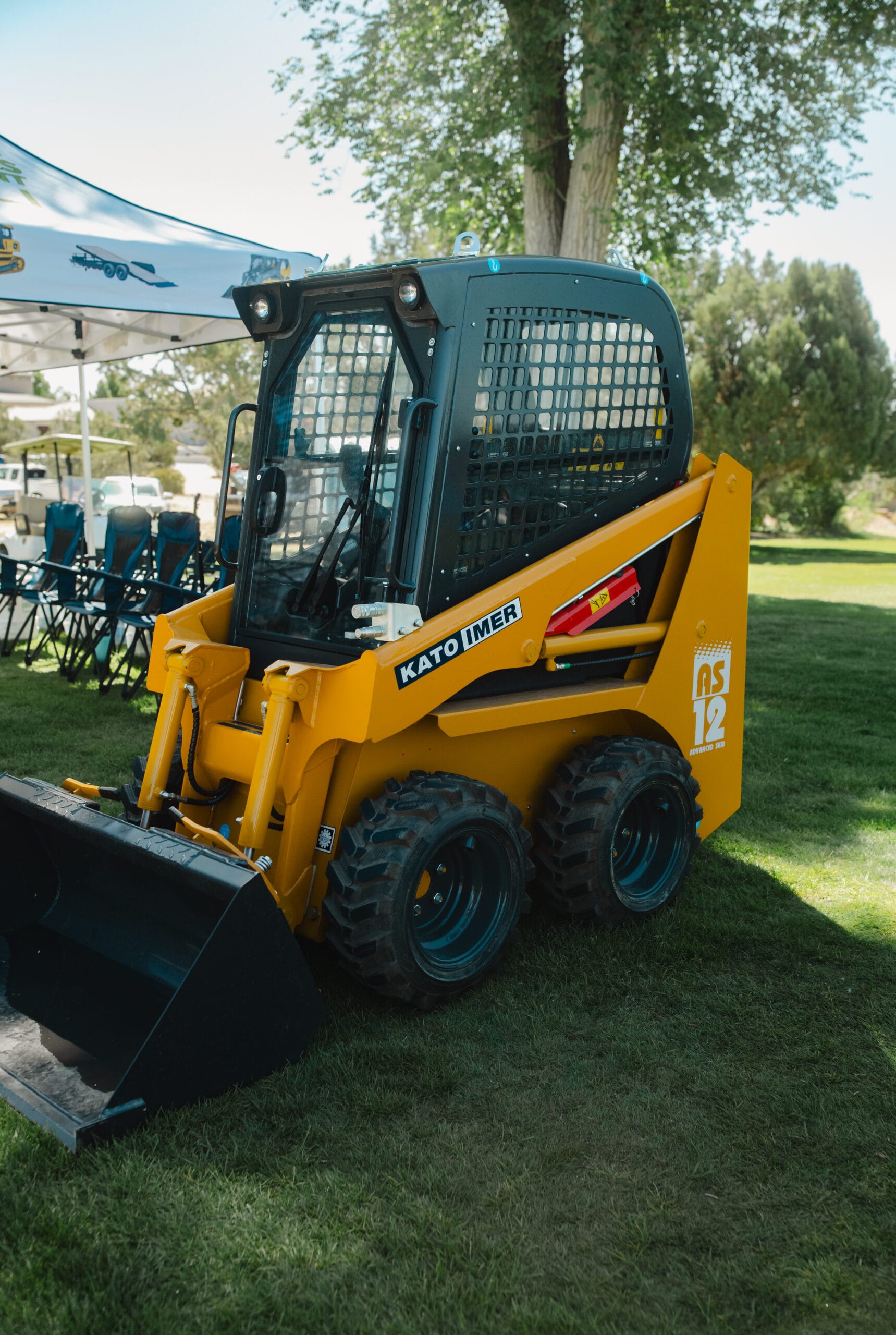

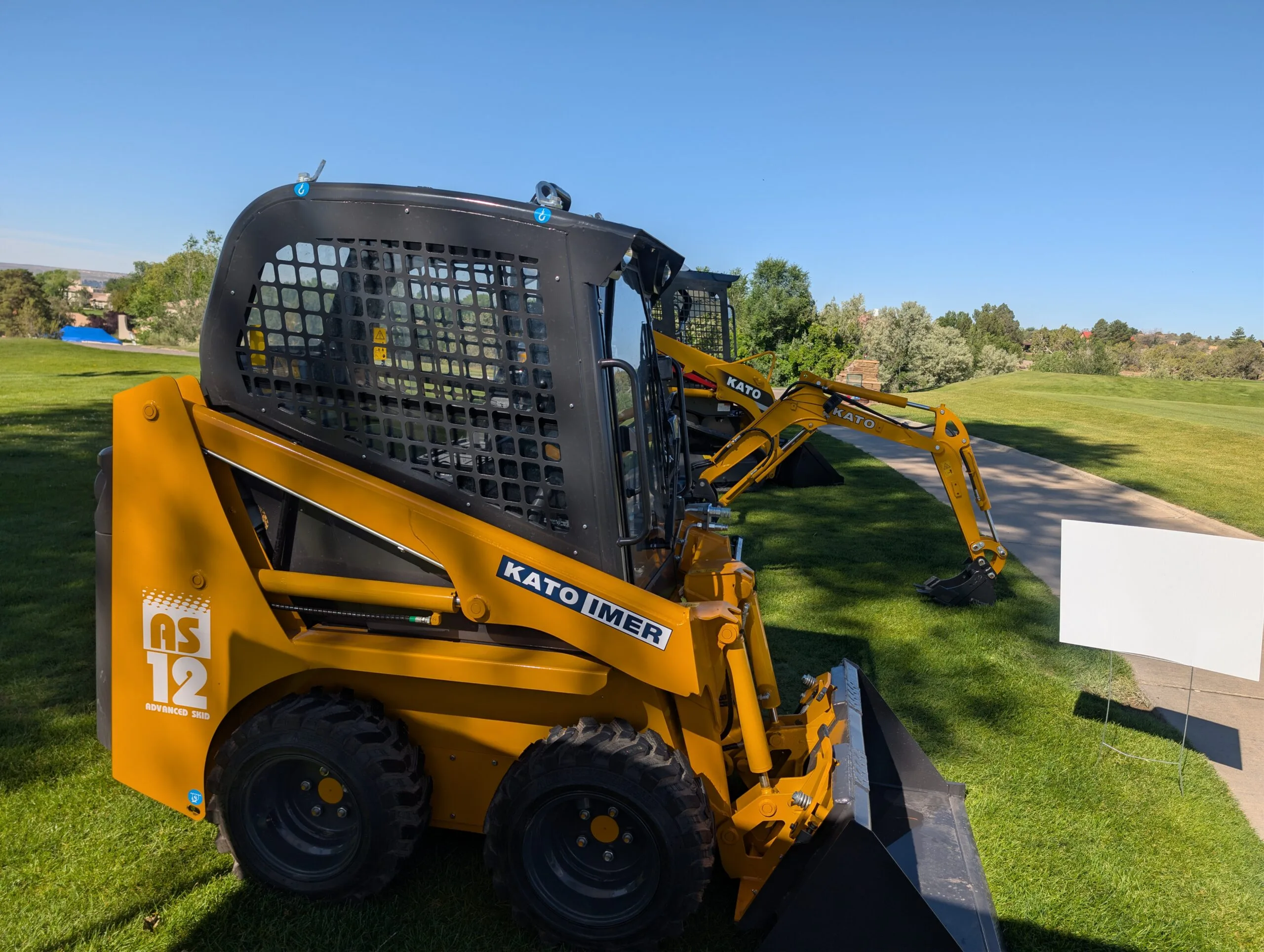

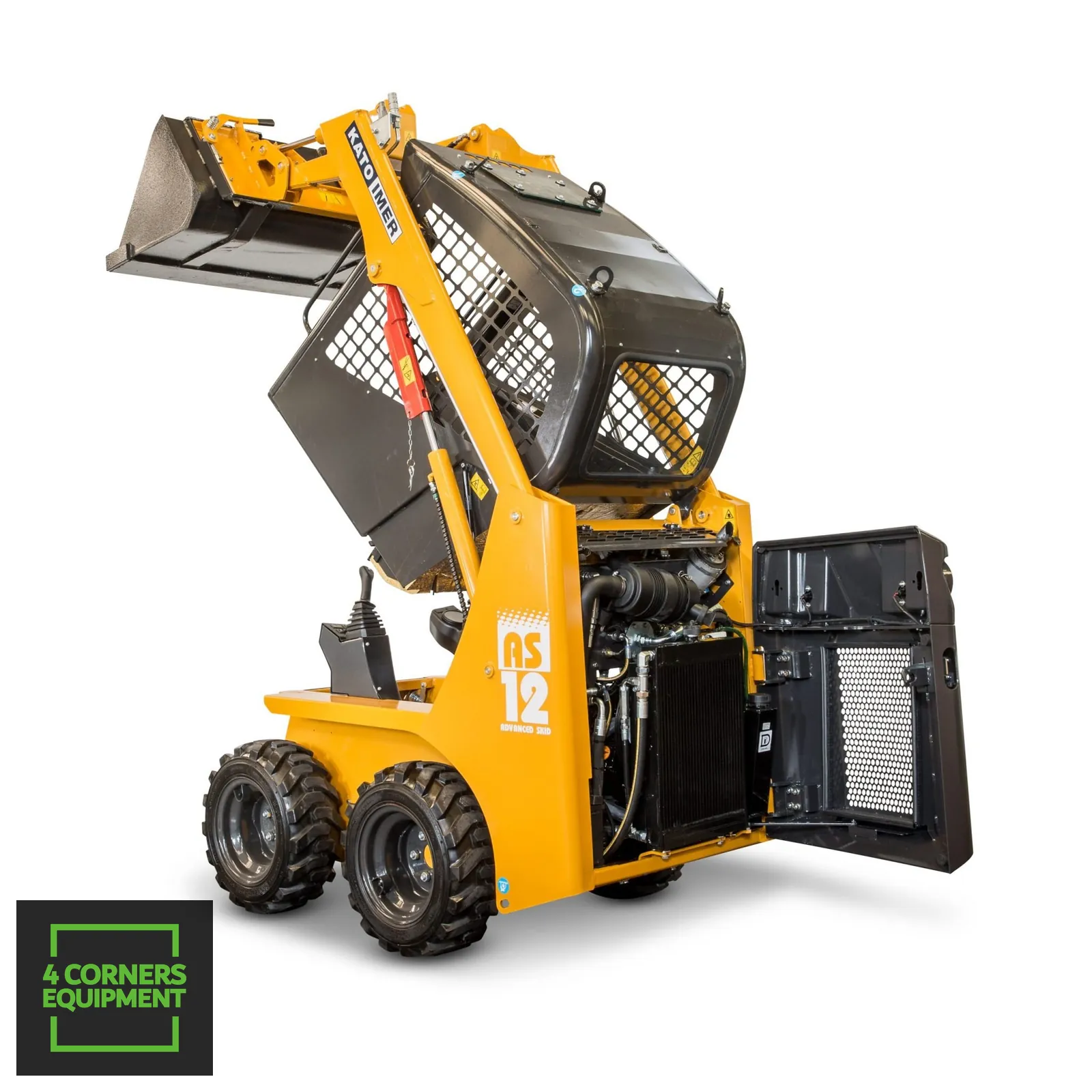

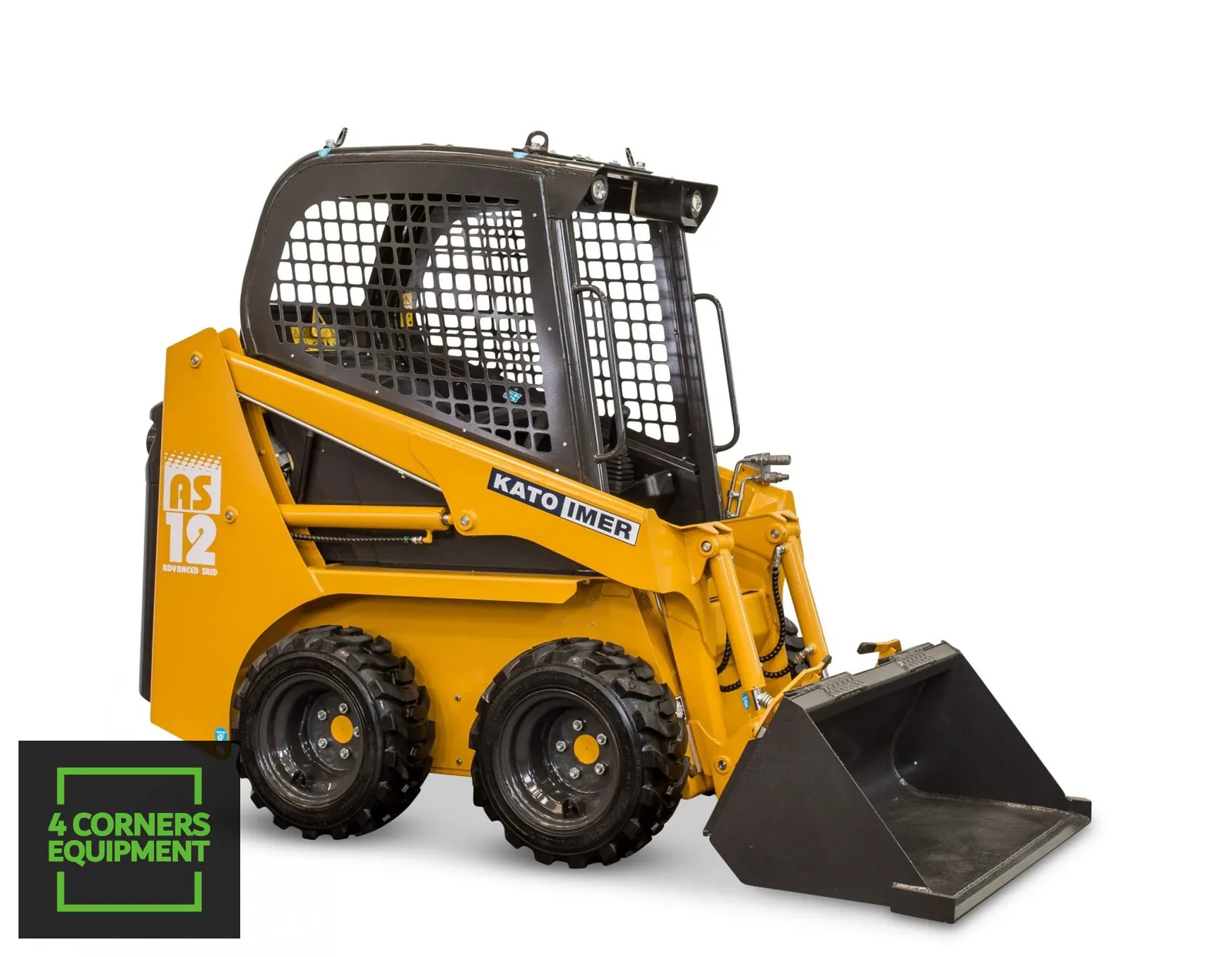

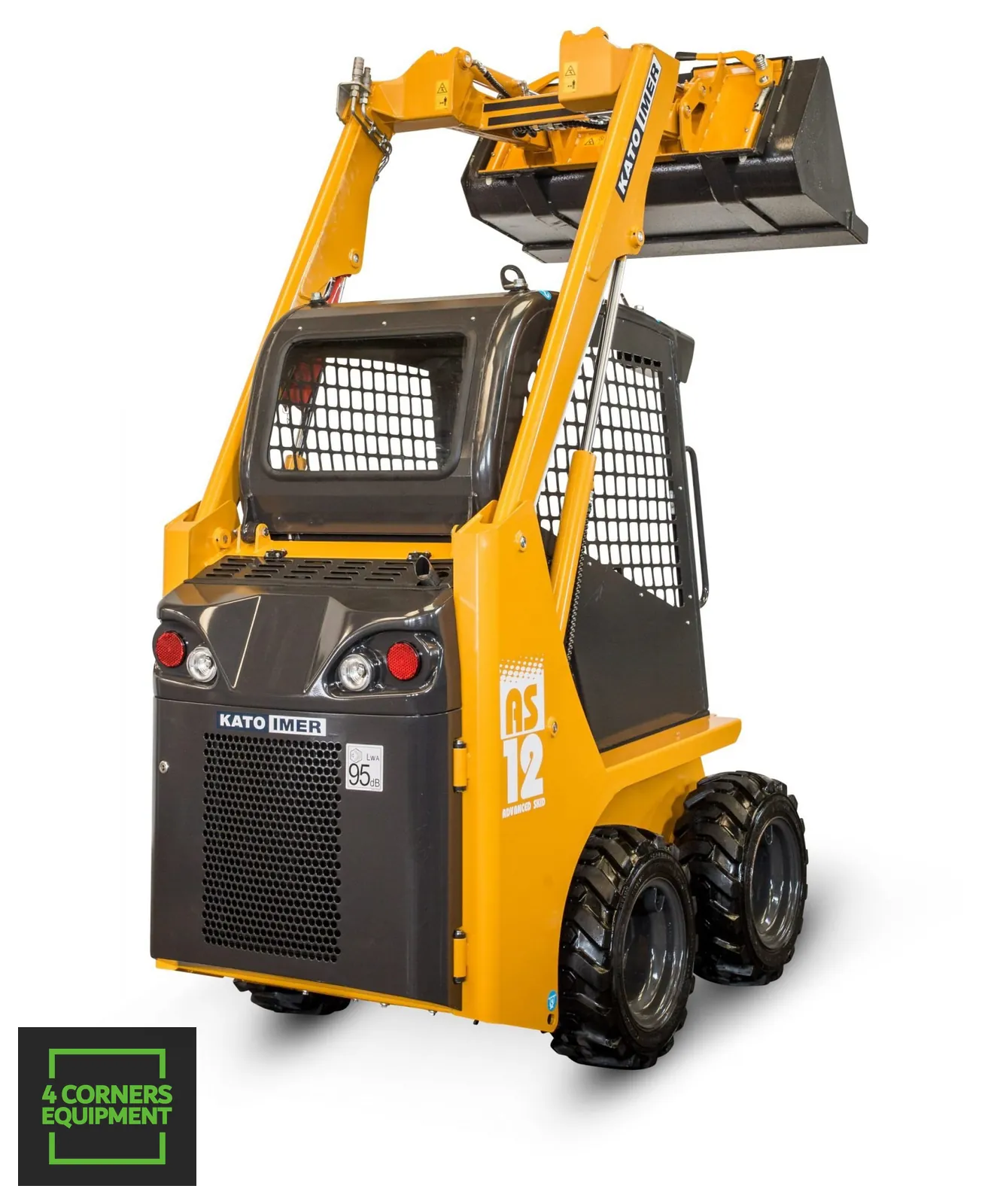

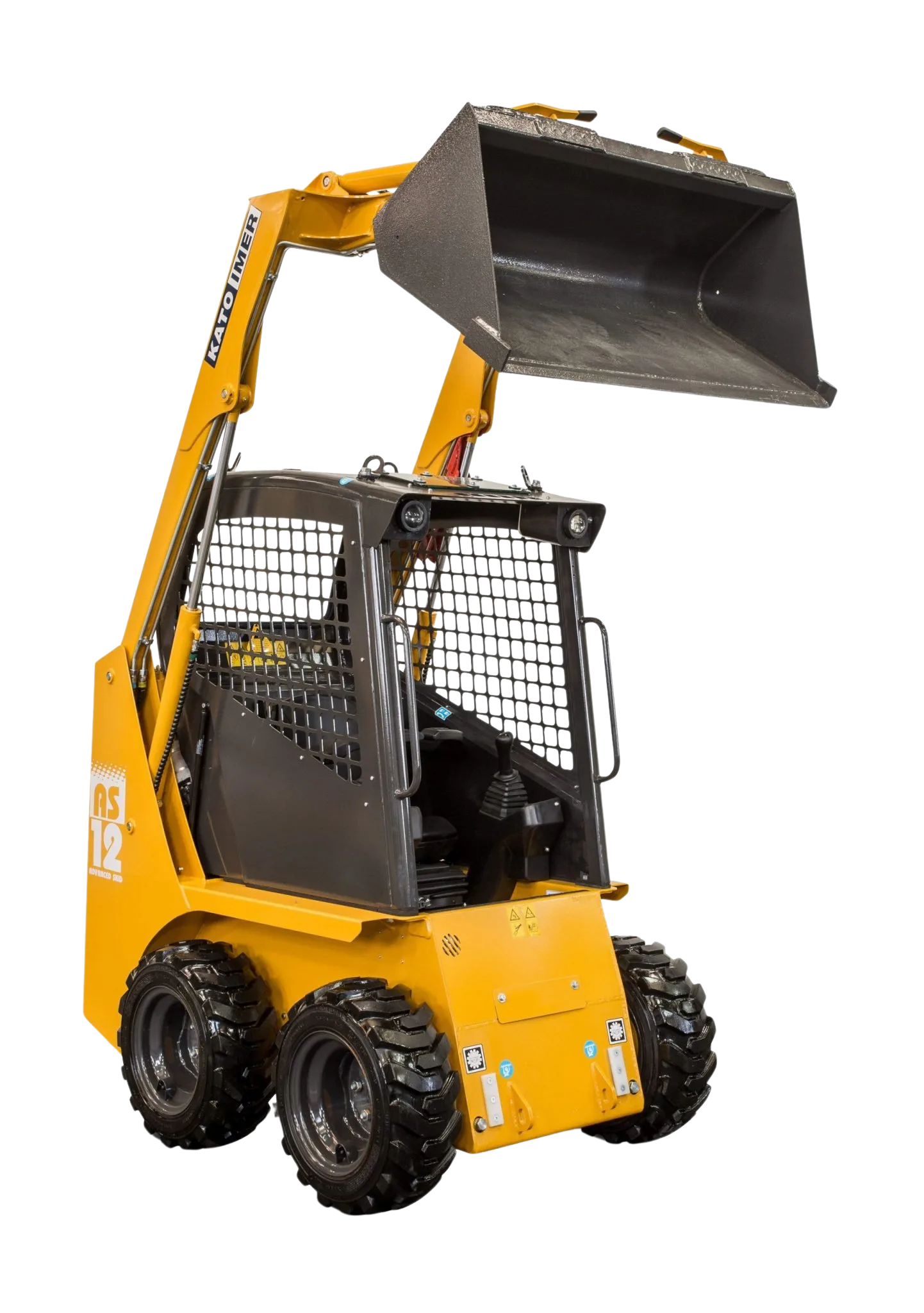

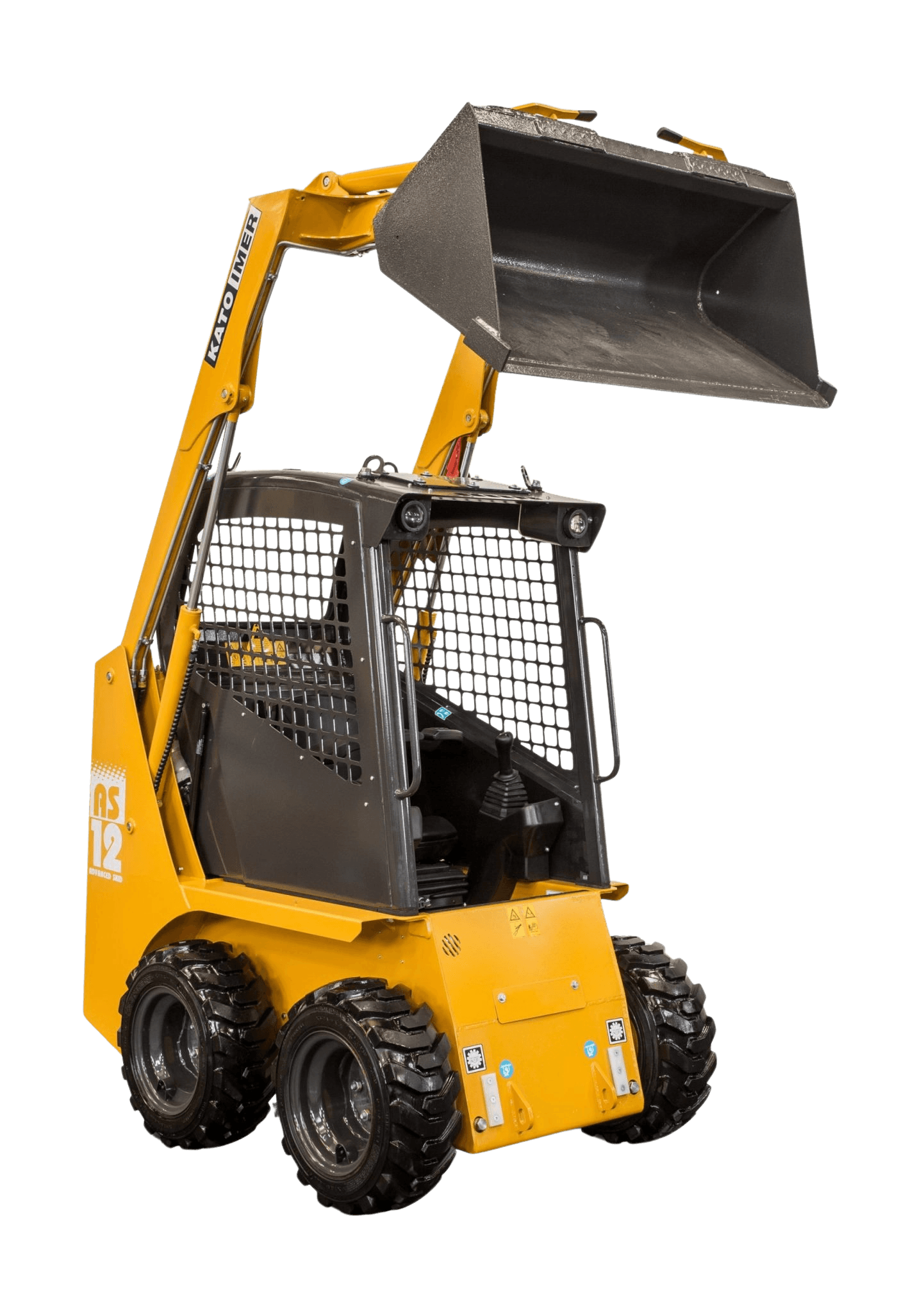

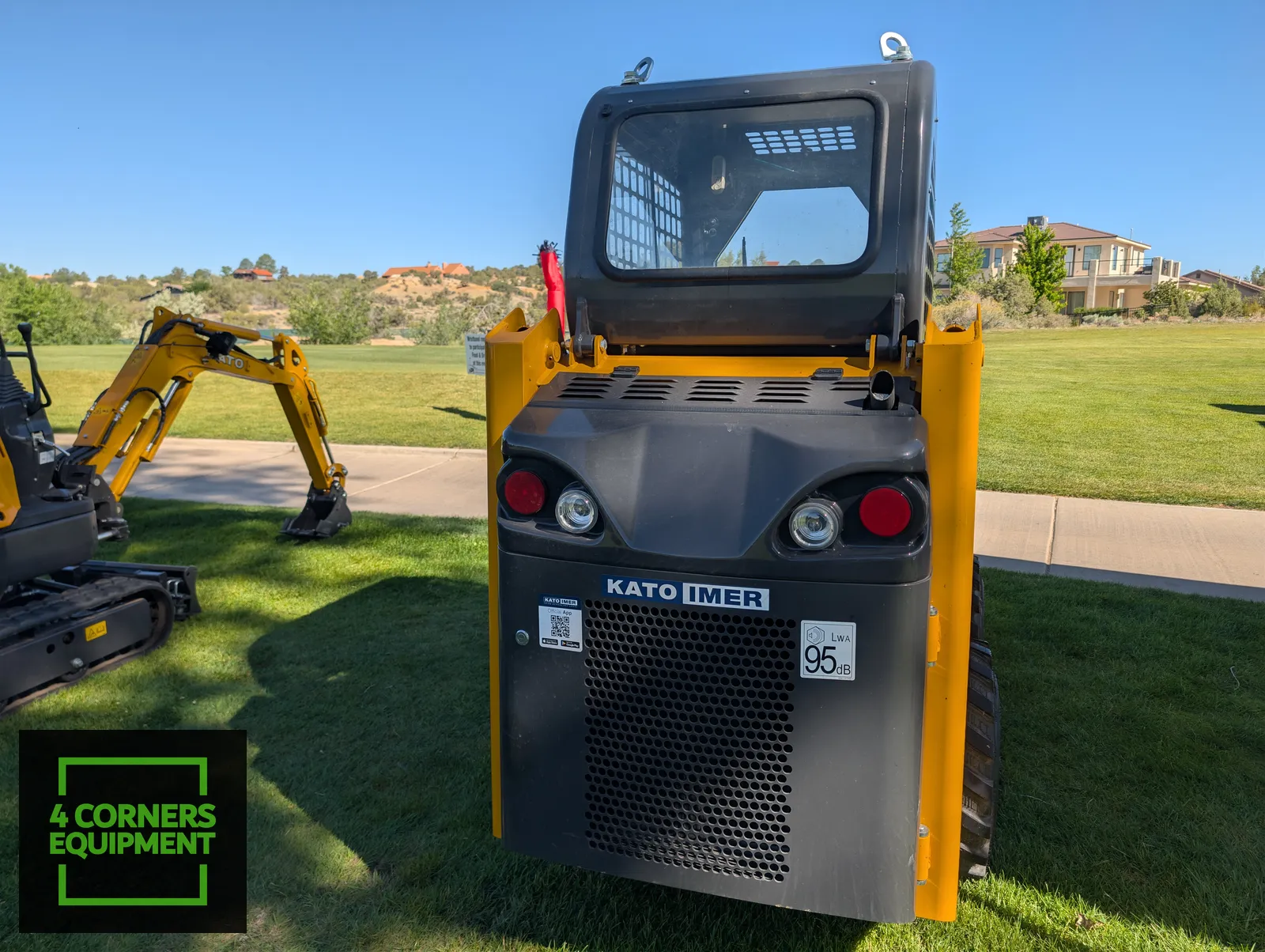

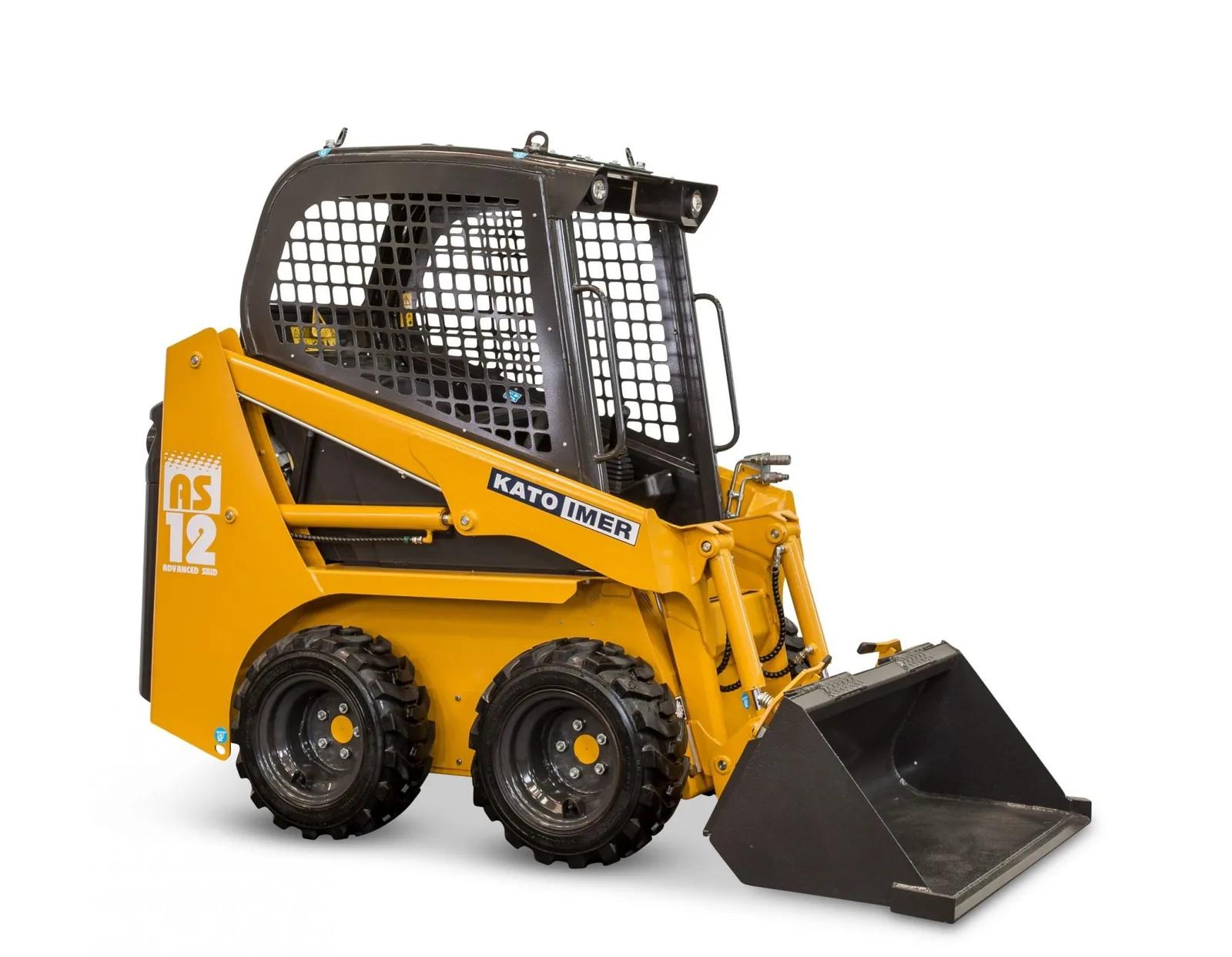

The Kato AS-12 is a compact, rubber-tire skid steer loader engineered for serious productivity in confined spaces. Powered by a 21 HP Yanmar 3TNV76 diesel engine, the AS-12 delivers genuine performance where larger machines simply can't go — urban job sites, interior demolition, landscaping, and agricultural applications.
With pilot-operated joystick controls, an SAE-rated operating load of 728 lbs, and a bucket breakout force of 1,658 lbs, this machine punches well above its weight class. Built on a rubber-tire chassis with a maximum travel speed of 4.35 mph, the AS-12 is as agile as it is capable.
What sets the AS-12 apart is its no-nonsense, straightforward design — no complex systems to learn, no steep operator learning curve. Any experienced equipment operator can step in and be productive from the first hour. And when you need parts, Kato CES stocks them in the U.S. so you're not waiting weeks for overseas orders. Less downtime. More work done.
Key Features

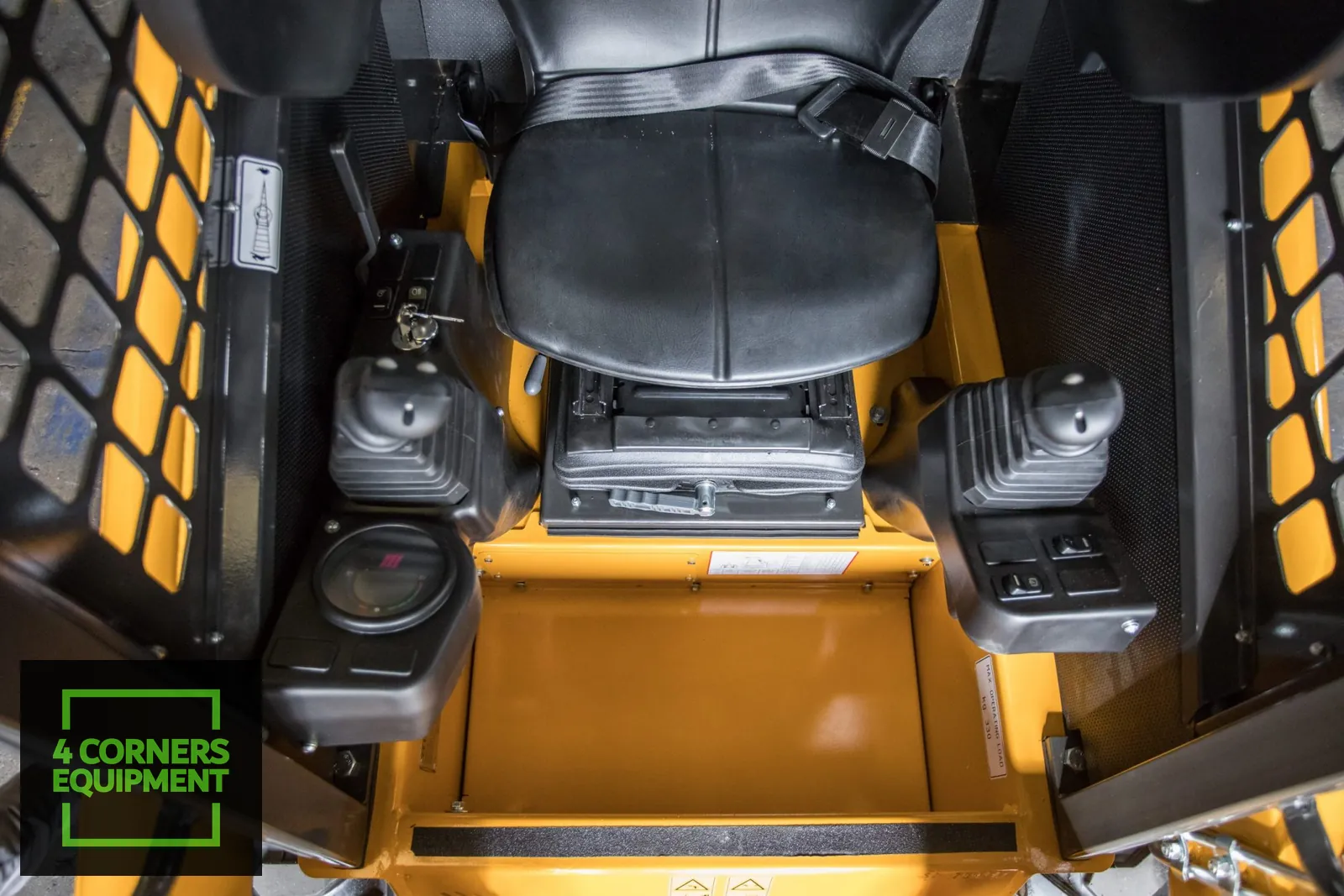

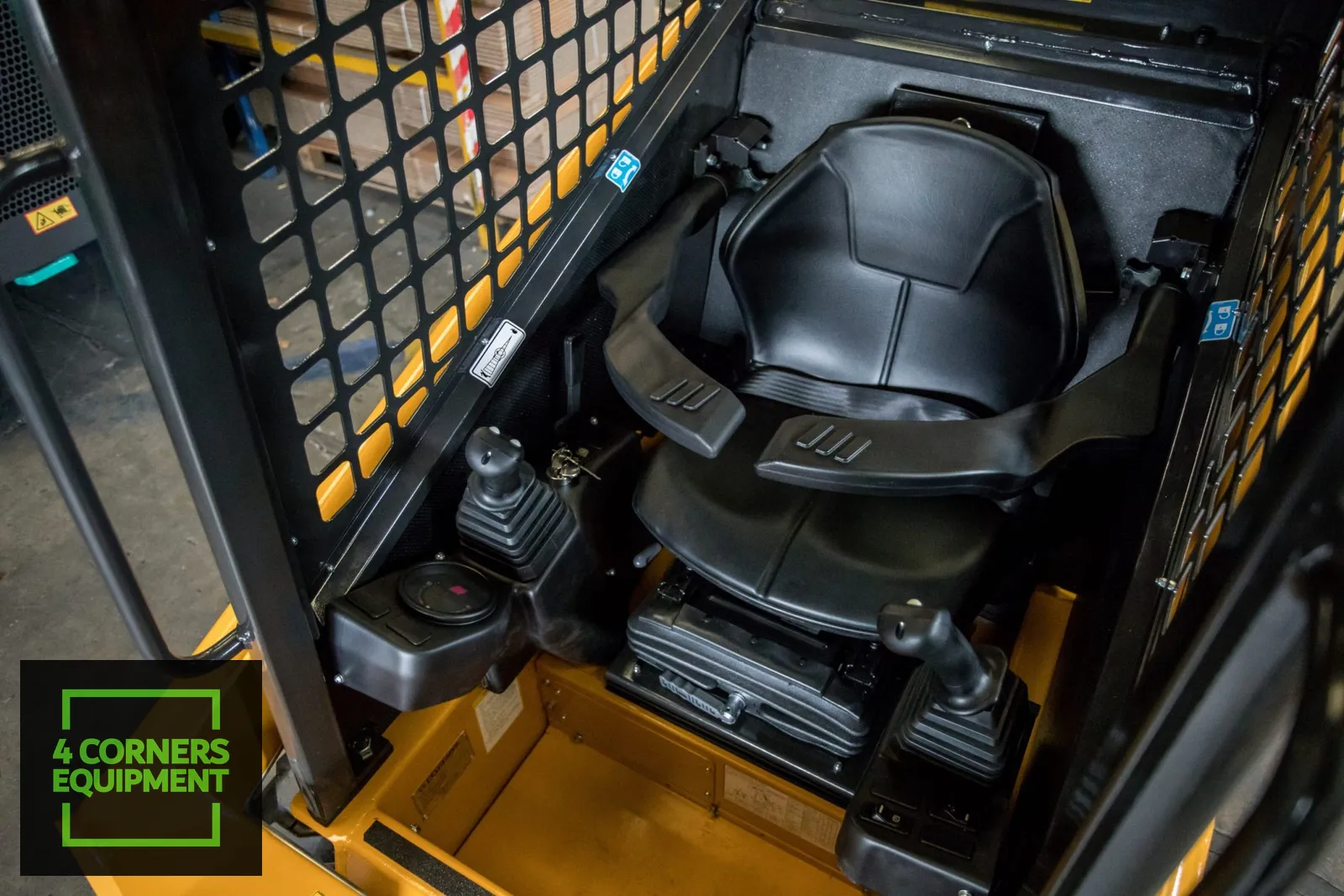

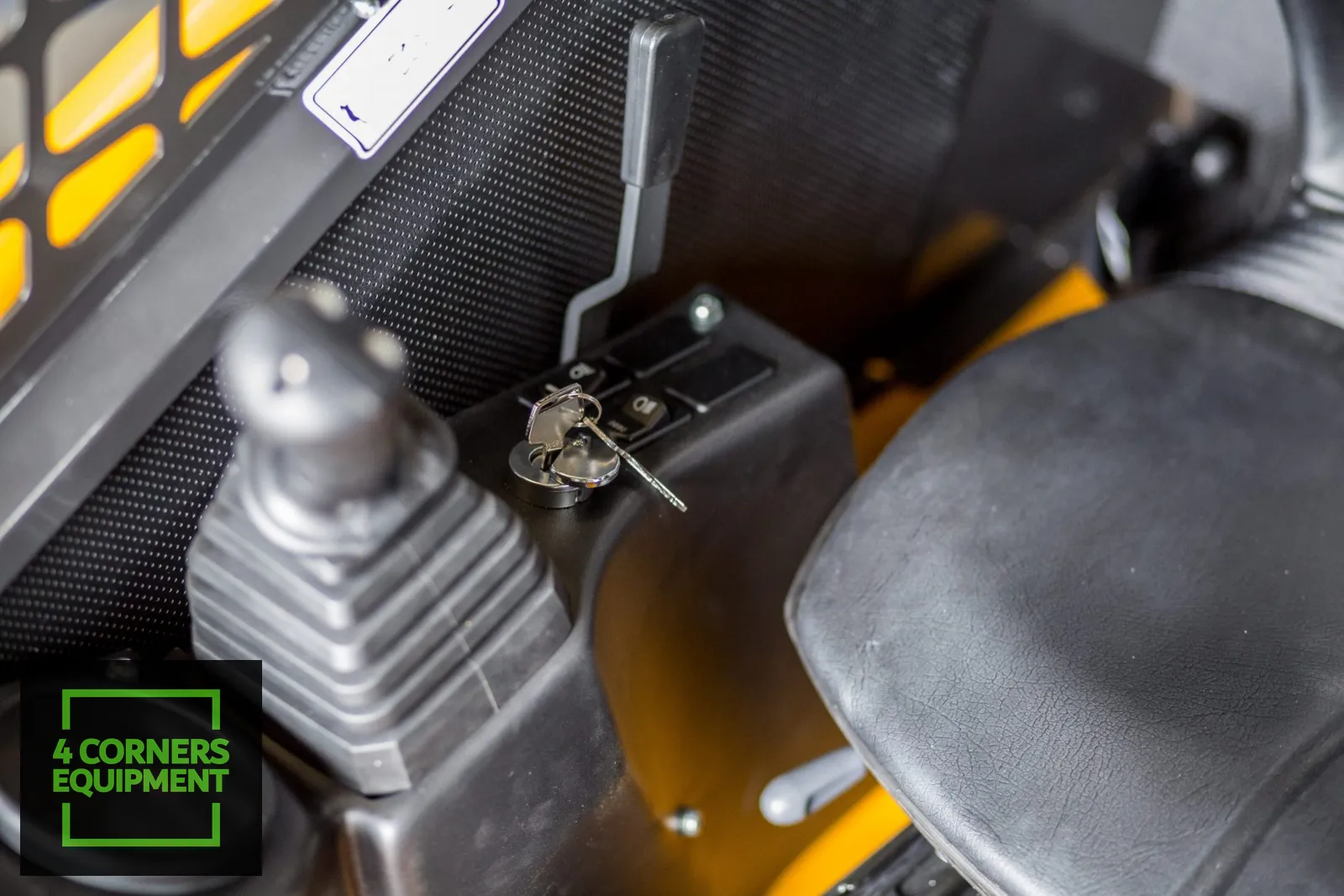

- Pilot-Operated Joystick Controls: Intuitive, low-effort operation reduces fatigue on long shifts
- 21 HP Yanmar Diesel Engine: Proven 3TNV76 engine delivers reliable power with low fuel consumption (1.26 gal/hr)
- Compact Rubber-Tire Design: 23–8.50×12 tires — navigate tight spaces without track damage to finished surfaces
- Strong Breakout Force: 1,658 lbs bucket breakout force handles heavy material with ease
- 728 lb SAE Load Capacity: Rated to SAE 35% standard for real-world confidence
- 6'8" Dump Height: Load trucks and dumpsters efficiently without repositioning
- Water-Cooled Engine: Consistent thermal management for all-day reliability
- Open Cab Configuration: Excellent visibility and ventilation; ideal for outdoor and agricultural work
- Simple, Operator-Friendly Design: No overcomplicated systems — any qualified operator can step in and get to work immediately with minimal familiarization
- U.S.-Stocked Parts: Kato CES maintains parts inventory in the U.S. through their dealer network — fast turnaround, minimal downtime when you need service
Specifications
- Operating Weight: 2,955 lbs
- Transportation Weight: 2,778 lbs
- SAE Load Capacity (35%): 728 lbs
- Tipping Load (50%): 1,455 lbs
- Bucket Breakout Force: 1,658 lbs
- Maximum Travel Speed: 0 – 4.35 mph
- Dump Height: 6'8"
- Engine: Yanmar 3TNV76, 21 HP / 2,500 RPM
- Cooling: Water cooled
- Fuel Consumption: 1.26 gal/hr
- Hydraulic Pressure: 2,610 PSI
- Auxiliary Flow: 7.4 GPM
- Tires: 23 – 8.50 × 12
- Fuel Tank: 5.3 gallons
- Standard Bucket Capacity: 13.06 cu/ft
Ideal Applications
- Urban construction and interior demolition in confined spaces
- Landscaping, hardscaping, and site preparation
- Agricultural operations — barn clean-out, feed handling, light grading
- Nursery and greenhouse material handling
- Utility work in tight corridors where track machines can't operate
- Golf course maintenance and turf-sensitive environments
Why Kato CES?
Kato Works has been manufacturing equipment in Japan since 1895. Kato CES (Compact Excavator Sales) has been the North American distributor of Kato compact equipment for over 30 years — family-owned and operated, with a reputation built on expertise, integrity, and unparalleled customer service. The AS-12 is Japanese-built equipment, U.S.-distributed and supported through a nationwide dealer network.
The AS-12 is intentionally simple — built to work, not to impress a spec sheet. That simplicity means any operator can get productive fast, and it means fewer things to go wrong. When something does need attention, Kato CES stocks parts in the U.S. so your machine is back up quickly. No waiting on overseas shipments. No excuses.
Where other skid steers sacrifice maneuverability for raw capacity, the Kato AS-12 excels in the spaces larger machines leave behind — and it keeps working long after the sale with real dealer support behind it.
