CAT D9R

Description

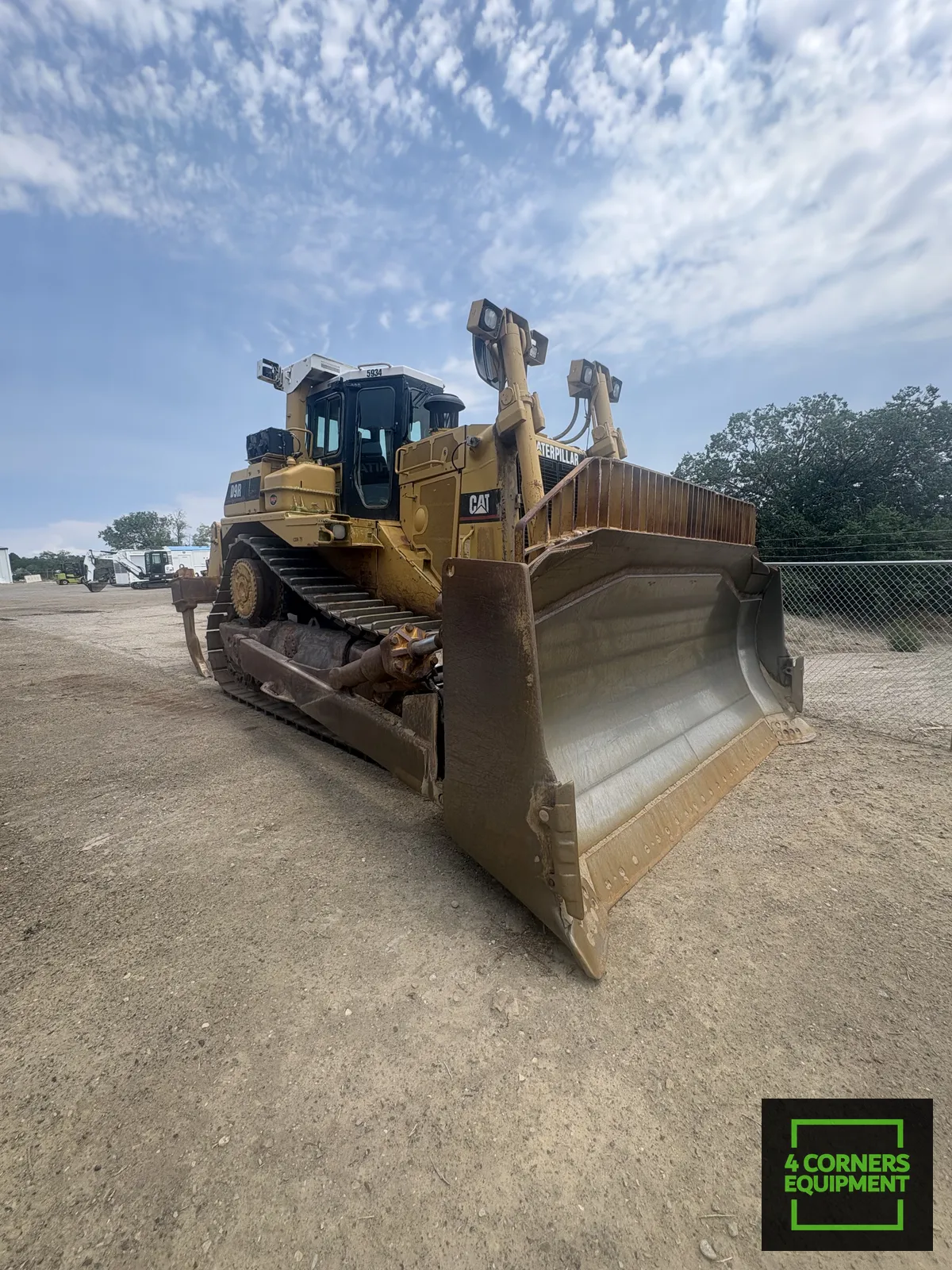

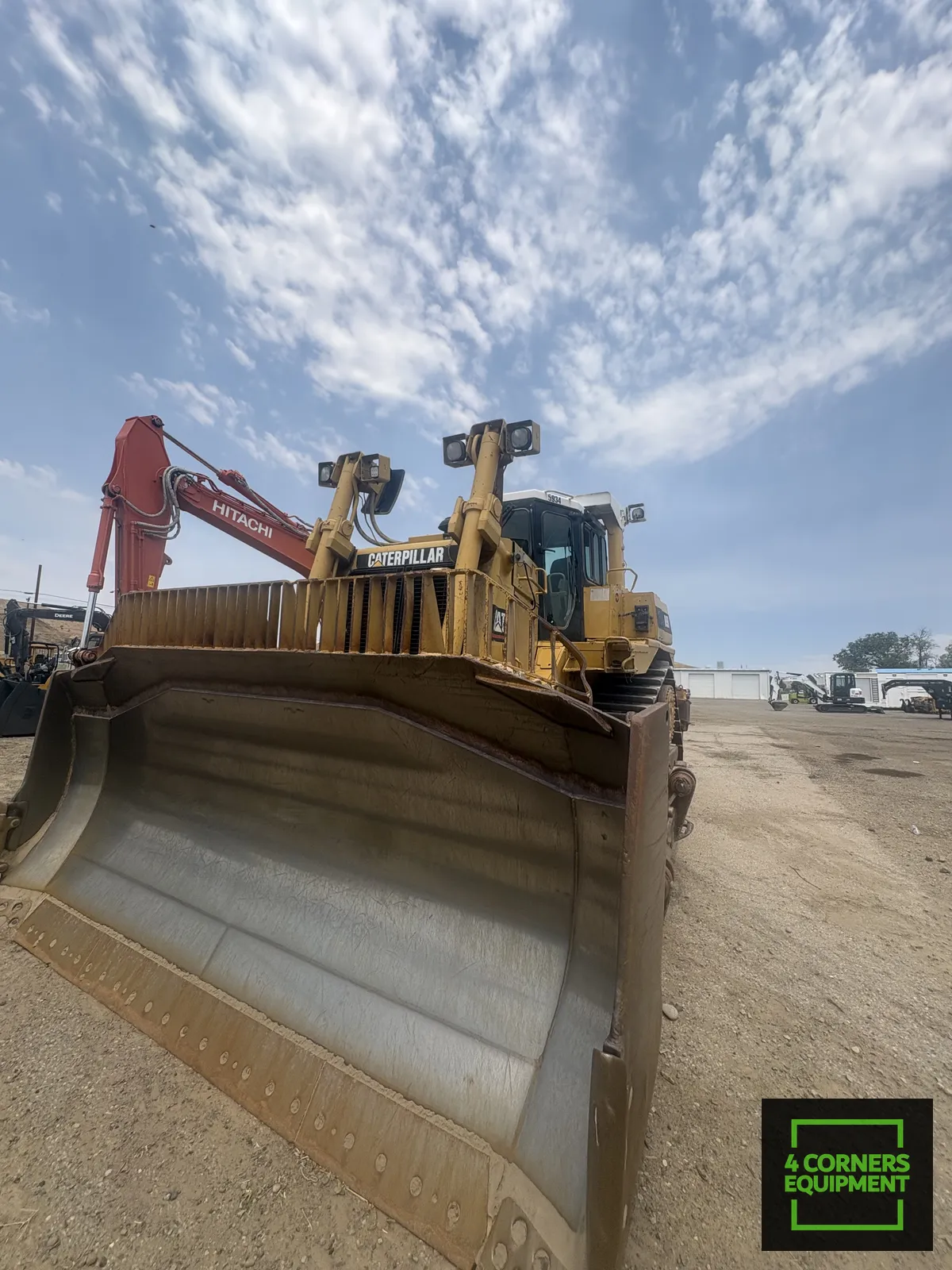

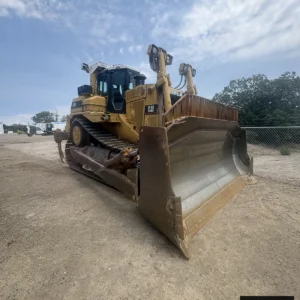

The Caterpillar D9R is a production-class track-type tractor powered by the Cat 3408C diesel engine producing 405 flywheel horsepower (443 HP gross) from 18 liters of displacement. It carries a 107,550 lb operating weight with an SU blade and single-shank ripper, and moves earth with up to 163,000 lbf of drawbar pull in first gear.

A powershift transmission delivers 3 speeds forward and 3 reverse, reaching 7.4 mph forward and 9.1 mph reverse. Blade options run from the 9SU semi-universal at 17.7 yd³ to the 9U universal at 21.4 yd³, and the single-shank ripper reaches 48.5 in of penetration with 72,025 lbf of pryout force. The elevated sprocket design keeps final drives out of the debris path to extend undercarriage life.

Built for large earthmoving, mining support, and heavy construction, the D9R runs with no power derating up to 7,500 ft, which suits Four Corners jobsites at elevation. It rides on 24 in Extreme Service shoes with an 88.6 in track gauge for stability under heavy load. Inspections are welcome and financing is available through 4 Corners Equipment in Farmington, NM.

Key Features

• Cat 3408C Diesel Engine: 405 HP flywheel and 443 HP gross from 18 liters of displacement give you steady pushing power in the toughest conditions.
• Massive Drawbar Pull: Up to 163,000 lbf in first gear lets you move heavy loads of earth without stalling.
• Powershift Transmission: 3 speeds forward and 3 reverse deliver smooth, responsive control on the grade.
• SU and U Blade Options: Choose the 17.7 yd³ semi-universal or 21.4 yd³ universal blade to match your material and job.
• Single-Shank Ripper: 48.5 in of penetration and 72,025 lbf of pryout force break up hardpan and rock.
• Elevated Sprocket Design: Keeps final drives above the ground line to reduce drivetrain wear and extend undercarriage life.
• No Altitude Derating: Full power up to 7,500 ft means no lost production on high-elevation Four Corners jobsites.
• Heavy-Duty Undercarriage: 24 in Extreme Service shoes and an 88.6 in track gauge hold the machine steady under load.
• Fast Travel Speeds: 7.4 mph forward and 9.1 mph reverse move you between cuts quickly.
• Ripper Force On Demand: 34,581 lbf of penetration force drives the shank into compacted ground.
• Multi-Shank Option: A 3-pocket ripper adds 74,639 lbf of pryout force for tearing out layered material.
• Ground Clearance: 23.4 in under the machine helps it work over uneven ground and debris.

Specifications

• Engine Model: Cat 3408C Diesel
• Gross Power: 443 HP @ 1,900 rpm
• Flywheel (Net) Power: 405 HP (SAE J1349)
• Displacement: 1,099 in³ (18 L)
• Bore x Stroke: 5.4 in x 6 in (137 mm x 152 mm)
• Transmission: Powershift, 3 speeds forward / 3 reverse
• Max Forward Speed: 7.4 mph (11.9 km/h)
• Max Reverse Speed: 9.1 mph (14.7 km/h)
• Max Drawbar Pull (1st): 163,000 lbf (725,000 N)
• Operating Weight: 107,550 lb (48,784 kg) with SU blade & single-shank ripper
• Shipping Weight: 79,705 lb (36,154 kg)
• Track Gauge: 88.6 in (2,250 mm)
• Track on Ground: 136.6 in (3,470 mm)
• Shoe Width: 24 in (610 mm) Extreme Service
• Ground Clearance: 23.4 in (596 mm)

Applications

• Large-scale earthmoving and site grading
• Mining support and overburden removal
• Land clearing and reclamation
• Road building and heavy construction
• Stockpile management
• Push-loading scrapers

Why Choose the CAT D9R?

The CAT D9R pairs the proven Cat 3408C engine with an elevated sprocket undercarriage and up to 163,000 lbf of drawbar pull, giving you a production-class dozer for large earthmoving, mining support, and heavy construction. With no power derating up to 7,500 ft, it holds full output on high-elevation Four Corners jobsites where lesser machines fall off. 4 Corners Equipment welcomes on-site inspections, arranges delivery anywhere in the US, and offers financing through our lending partners. Ready to put this D9R to work? Talk to our team in Farmington, NM for pricing and financing details.
