Description

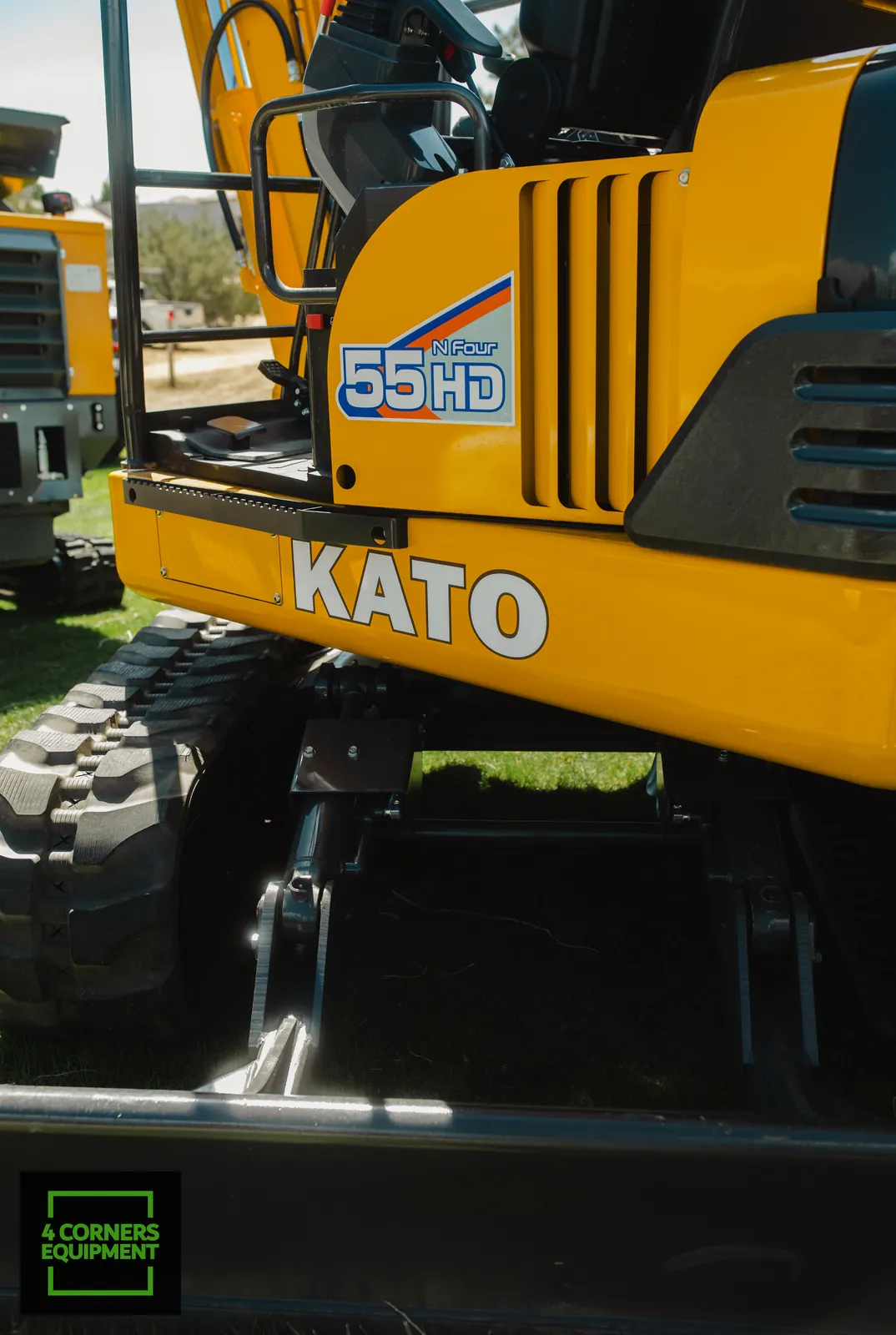

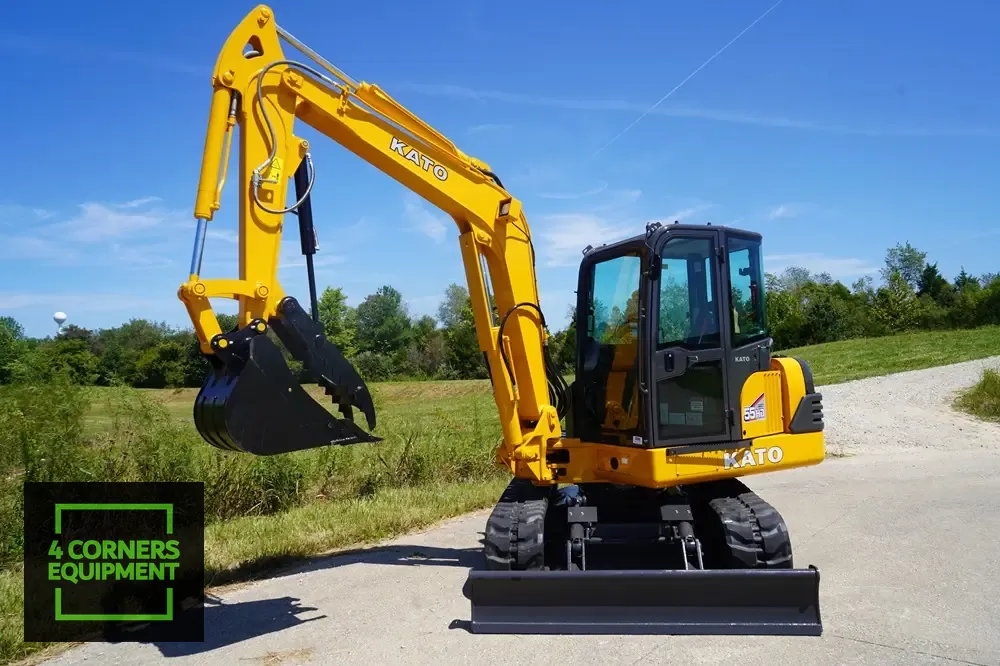

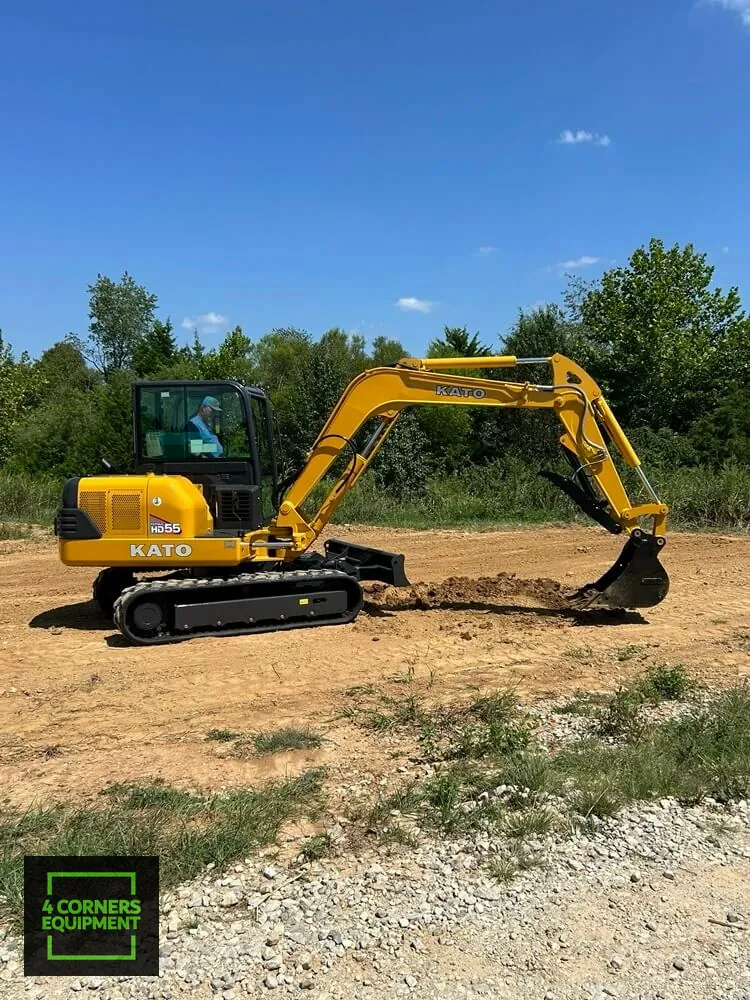

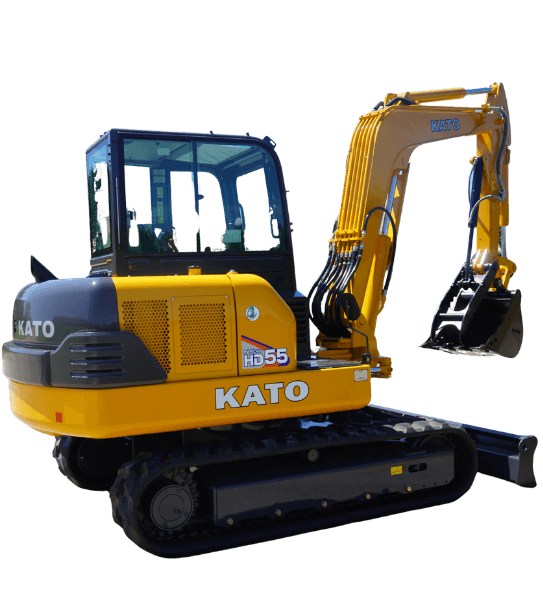

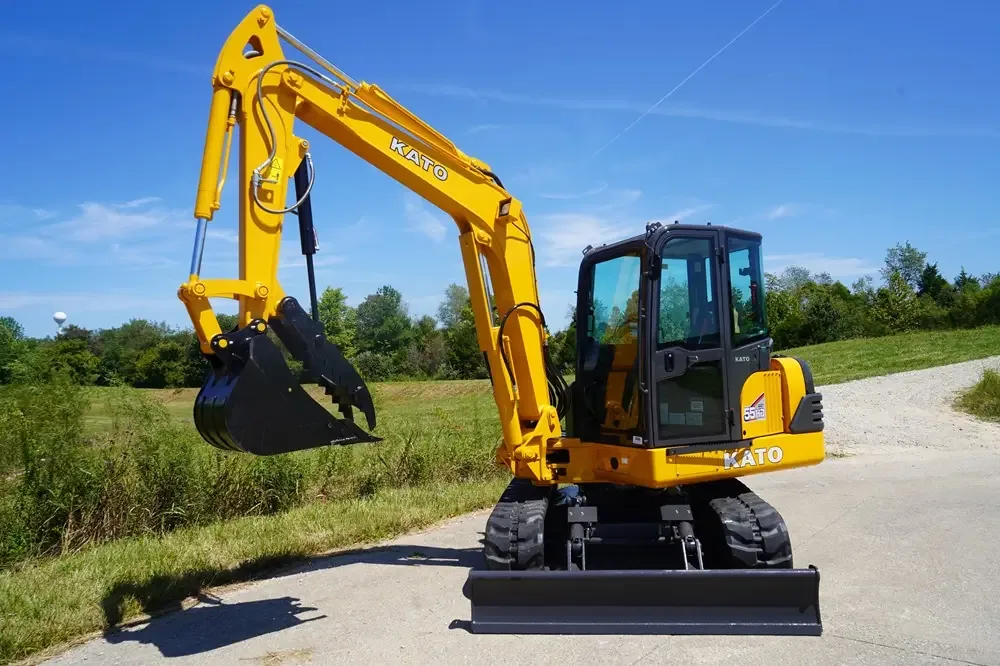

The Kato HD55N4 is a rugged, hard-working mini excavator that outperforms any other machine in its class — and is more productive than a loader-backhoe when working in limited-access areas. With a 63.8 HP water-cooled diesel engine, 12’8″ digging depth, and a 11,071 lb bucket breakout force, the HD55N4 brings full-size excavator capability in a compact, job-site-ready package.
Operator comfort and simplicity are built in from the start. Short-lever hydraulic pilot controls with armrests deliver a high degree of operational responsiveness, and any experienced operator can step in and get to work without a steep learning curve. Standard heated cabin or optional 4-post canopy means year-round productivity. And with Kato CES U.S.-stocked parts behind it, you stay on the job when it counts.
Key Features
- 63.8 HP Water-Cooled Diesel Engine: Serious power output for demanding excavation, trenching, and demolition work
- 12’8″ Digging Depth: Reach deep without repositioning — utilities, footings, drainage, and more
- 11,071 lb Bucket Breakout Force: Tackles compacted soils, rock-laden ground, and heavy-duty digging with authority
- Variable Displacement Piston Pumps: Efficient hydraulic system with auxiliary hydraulics standard — run attachments right out of the box
- 2-Speed Travel: Low/high travel speeds (1.6/2.8 mph) for precise positioning and efficient site movement
- Standard Backfill Blade: Grade and backfill without switching equipment
- Rubber or Steel Tracks: Choose the right track for your surface — turf-safe rubber or heavy-duty steel
- ROPS Certified: Operator protection built in as standard, not an add-on

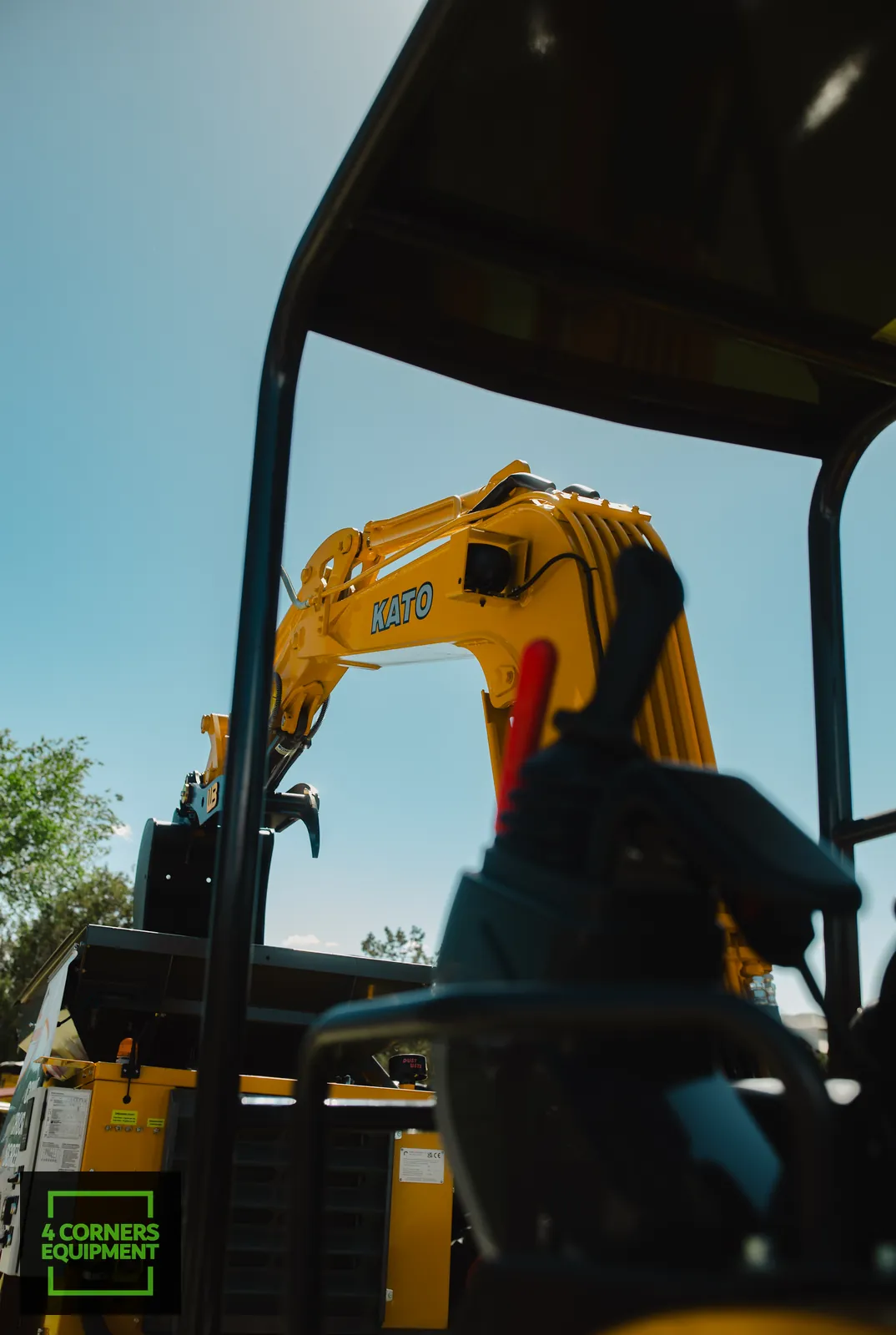

- Simple, Operator-Friendly Controls: Short-lever hydraulic pilot controls with armrests — any qualified operator is productive immediately
- U.S.-Stocked Parts: Kato CES maintains parts inventory in the U.S. through their dealer network — fast turnaround when you need service
- Standard A-F Quick Change Valve: Attachment compatibility built in from the factory
Specifications
- Operating Weight: 12,733 lbs
- Transportation Weight: 11,795 lbs
- Engine Output: 63.8 HP (water-cooled diesel)
- Digging Depth: 12’8″ (3,890 mm)
- Maximum Reach: 246″ (6,240 mm)
- Bucket Breakout Force: 11,071 lbs
- Bucket Capacity: 5 ft³
- Bucket Width: 24″
- Maximum Swing Speed: 9 rpm
- Travel Speed (Low/High): 1.6 / 2.8 mph
- Gradeability: 30°
- Ground Pressure: 4.79 psi
- Hydraulic System Pressure: 24.5 MPa
- Fuel Tank Capacity: 110 L (~29 gal)
Ideal Applications

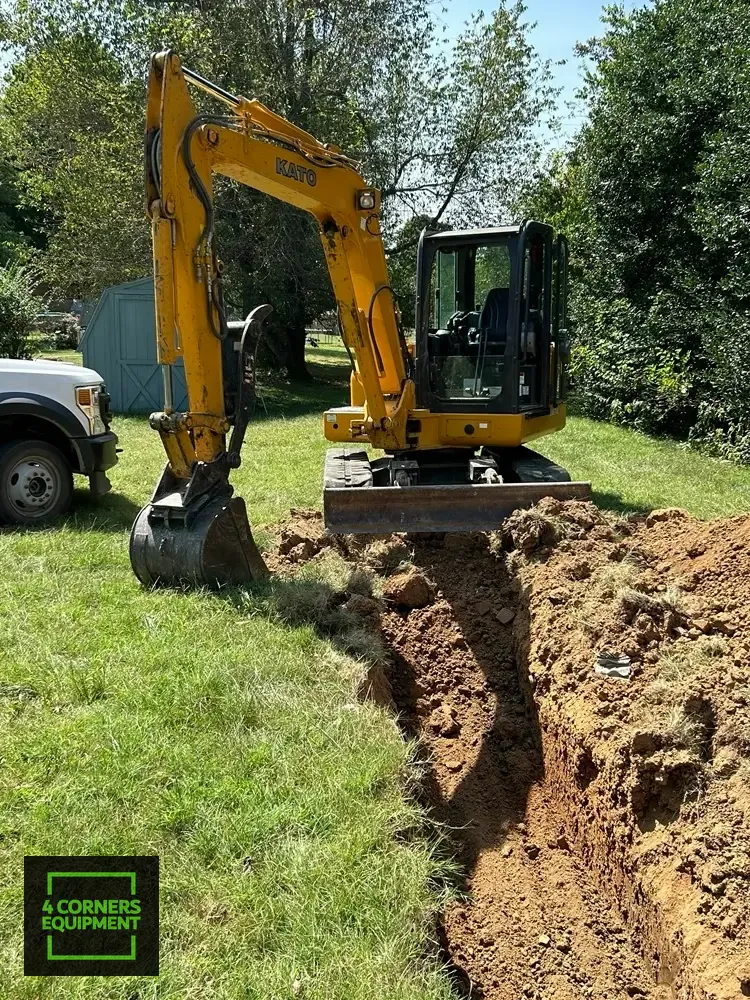

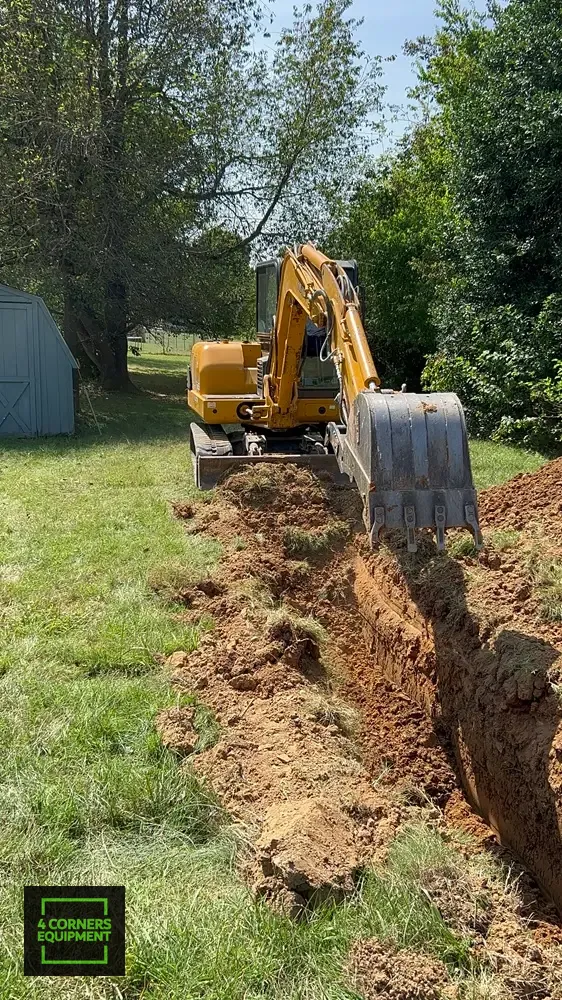

- Utility trenching — water, sewer, electric, gas lines in tight corridors
- Foundation and footing excavation for residential and light commercial
- Landscaping and hardscaping grading and shaping
- Demolition and debris removal in confined spaces
- Drainage and culvert installation
- Agricultural earthwork — ponds, berms, irrigation ditches
- Pipeline and oil field support where access is limited
Why Kato CES?
Kato Works has been manufacturing equipment in Japan since 1895. Kato CES (Compact Excavator Sales) has been the North American distributor of Kato compact equipment for over 30 years — family-owned and operated, with a reputation built on expertise, integrity, and unparalleled customer service.
The HD55N4 is intentionally built to work, not to impress a spec sheet. That simplicity means any operator gets productive fast and fewer things go wrong. When something does need attention, Kato CES stocks parts in the U.S. — no waiting on overseas shipments, no extended downtime. Japanese-built, U.S.-supported.
